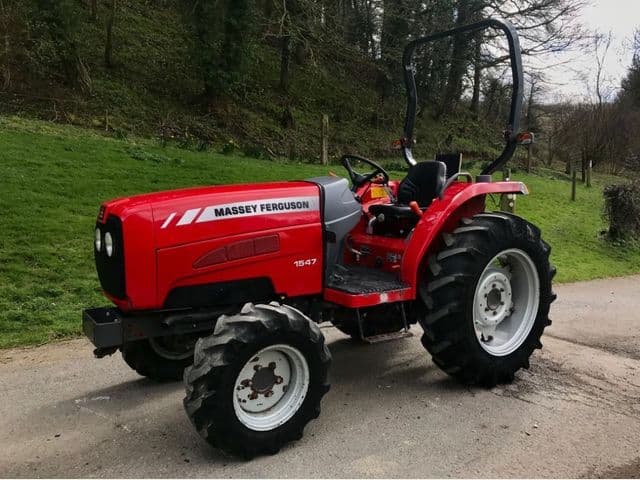

Massey Ferguson 1547

Last Updated: June 2024

Overview

The Massey Ferguson 1547 is a compact utility tractor that was manufactured by Massey Ferguson from 2005 to 2008. Powered by an Iseki 4-cylinder, liquid-cooled diesel engine, it has a displacement of 134 cubic inches and produces 47 horsepower at 2600 RPM. The tractor is available with several transmission options including SynchroShuttle, hydrostatic, PowerShuttle, and DynaQPS PowerShuttle, providing ample choices for various farming needs. The rated operating weight and specific tire information are not documented, but the tractor's dimensions include a length of 132.7 inches, a width of 66.1 inches, and a height of 90.7 inches. It features a three-point hitch of Category 3 with a lift capacity of 3483.4 lbs at 24 inches and has an open center hydraulic system.
Show more...

Key Specifications

Category: Utility

Power Output: 47

Transmission: SynchroShuttle, hydrostatic, PowerShuttle, DynaQPS PowerShuttle

Drive Type: 2WD

Fuel Type: Diesel

Lift Capacity: 3483.4 lbs (at 24 inches)

Image Gallery

Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor Massey Ferguson 1547 Tractor

Massey Ferguson 1547 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Hitch Capacity
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
134
Bore (in)
3.43
Stroke (in)
3.62
Rated RPM
2600
Power Output (hp)
47

Transmission

Type
SynchroShuttle, hydrostatic, PowerShuttle, DynaQPS PowerShuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
132.7
Width (in)
66.1
Height (in)
90.7
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2008
Hitch Type
I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
3483.4 lbs (at 24 inches)
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
