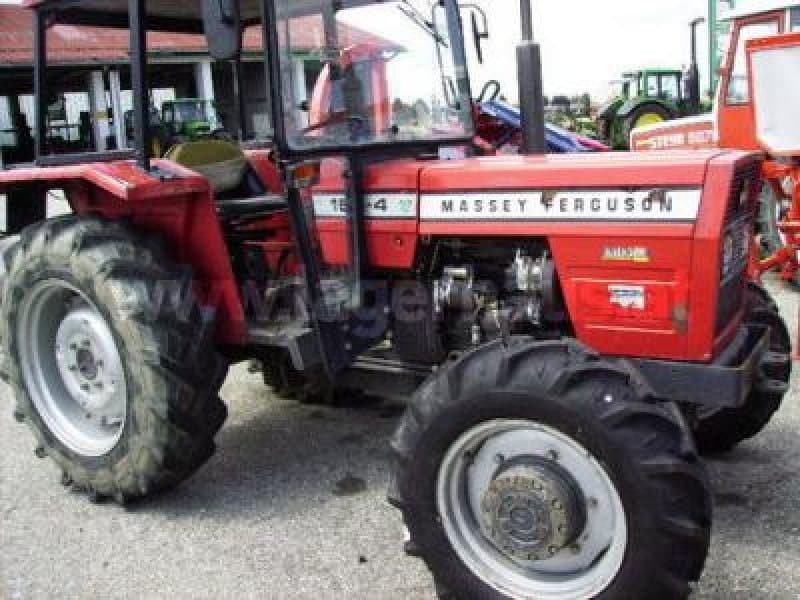

Massey Ferguson 154-4

Last Updated: June 2024

Overview

The Massey Ferguson 154-4 is a farming tractor that was equipped with a dependable Perkins AD3.152 engine. This three-cylinder diesel engine provides a power output of 50 hp with a liquid cooling system and direct injection for efficient combustion. The engine's displacement is 152.7 cubic inches, and it operates at a maximum rated RPM of 2200. The tractor's transmission is partially synchronized with 12 forward gears and 4 reverse gears. Tires on the standard configuration include a front size of 9.5/9-20 and a rear size of 13.6/12-28. The tractor's dimensions include a length of 140 inches and a width of 60.6 inches, with the ROPS standing 87.8 inches tall. With an operating weight of 5176 pounds, this tractor is robust and designed for various tasks. The steering type, drive type, specific PTO speeds, brake type, operator station type, and additional features are not specified in the data provided. The tractor also features a category II three-point hitch and an open center hydraulic system. This information serves to offer a detailed understanding of the Massey Ferguson 154-4's capabilities and specifications for those looking for in-depth technical knowledge of their tractor.
Show more...

Key Specifications

Power Output: 50

Transmission: Partially synchronized

Operating Weight: 5176

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
AD3.152
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
3
Displacement (ci)
152.7
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
50

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
140
Width (in)
60.6
Height (in)
87.8 (ROPS height as a proxy for overall height)
Operating Weight (lb)
5176

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
11
Front Tire Diameter (in)
20
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category II Three-Point Hitch
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
