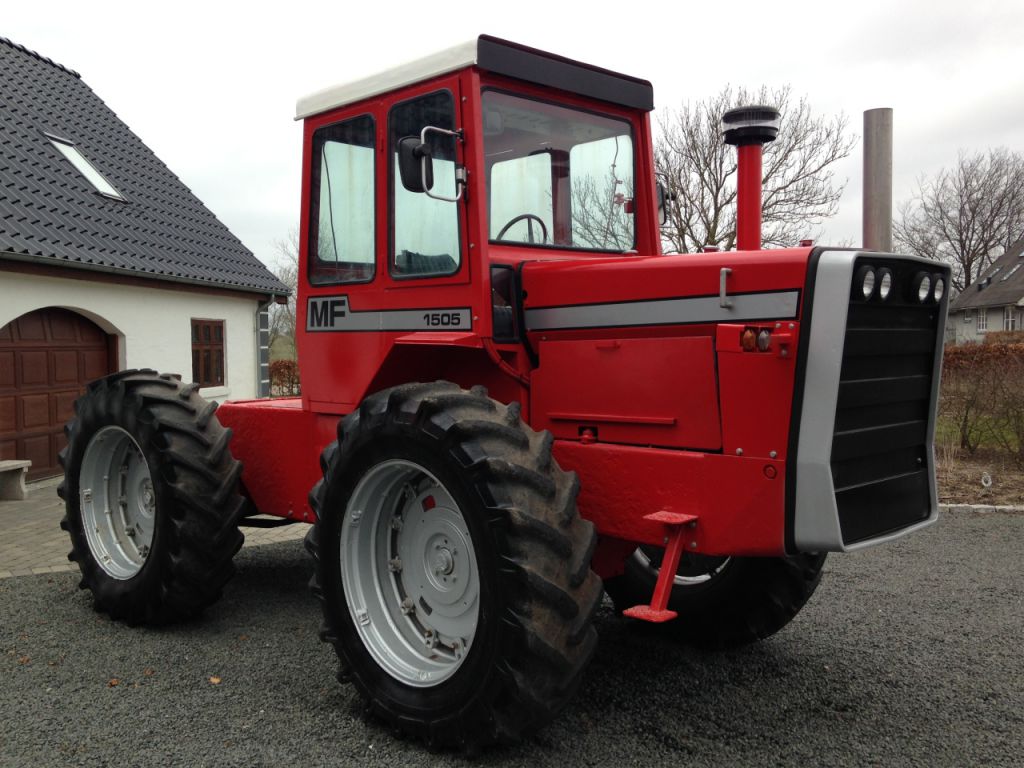

Massey Ferguson 1505

Last Updated: September 2024

Overview

The Massey Ferguson 1505 is a powerful tractor built for serious farm work. It has a strong Caterpillar 3208 engine with 8 cylinders and 185 horsepower. This diesel engine is liquid-cooled and runs at 2800 rpm. The tractor has a 12-speed forward and 4-speed reverse transmission, giving farmers lots of options for different tasks.

This tractor is big and sturdy. It's 224 inches long, 98.8 inches wide, and 131 inches tall. It weighs 17,960 pounds, which helps it handle tough jobs. The Massey Ferguson 1505 has large 23.1-30 tires on both the front and back. It also has hydrostatic power steering, making it easier to control. The tractor comes with a comfortable cab for the driver and uses an electric starter. It has a Category 3 hitch and a 1000 rpm PTO speed, which lets it work with many different farm tools.
Show more...

Key Specifications

Power Output: 185 hp (138.0 kW)

Operating Weight: 17960 lb (8147 kg)

Fuel Type: Diesel

Massey Ferguson 1505 vs. Similar Tractors

Power Output

The Power Output for the Massey Ferguson 1505 is Above Average. It is greater than 89% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Massey Ferguson 1505 is Above Average. It is greater than 90% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Massey Ferguson 1505 is Excellent. It is greater than 95% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Massey Ferguson 1505 is Excellent. It is greater than 93% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
3208
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
8
Displacement
636 ci (10.4 L)
Bore
4.50 in (114.3 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2800
Power Output
185 hp (138.0 kW)

Transmission

Forward Gears
12
Reverse Gears
4
