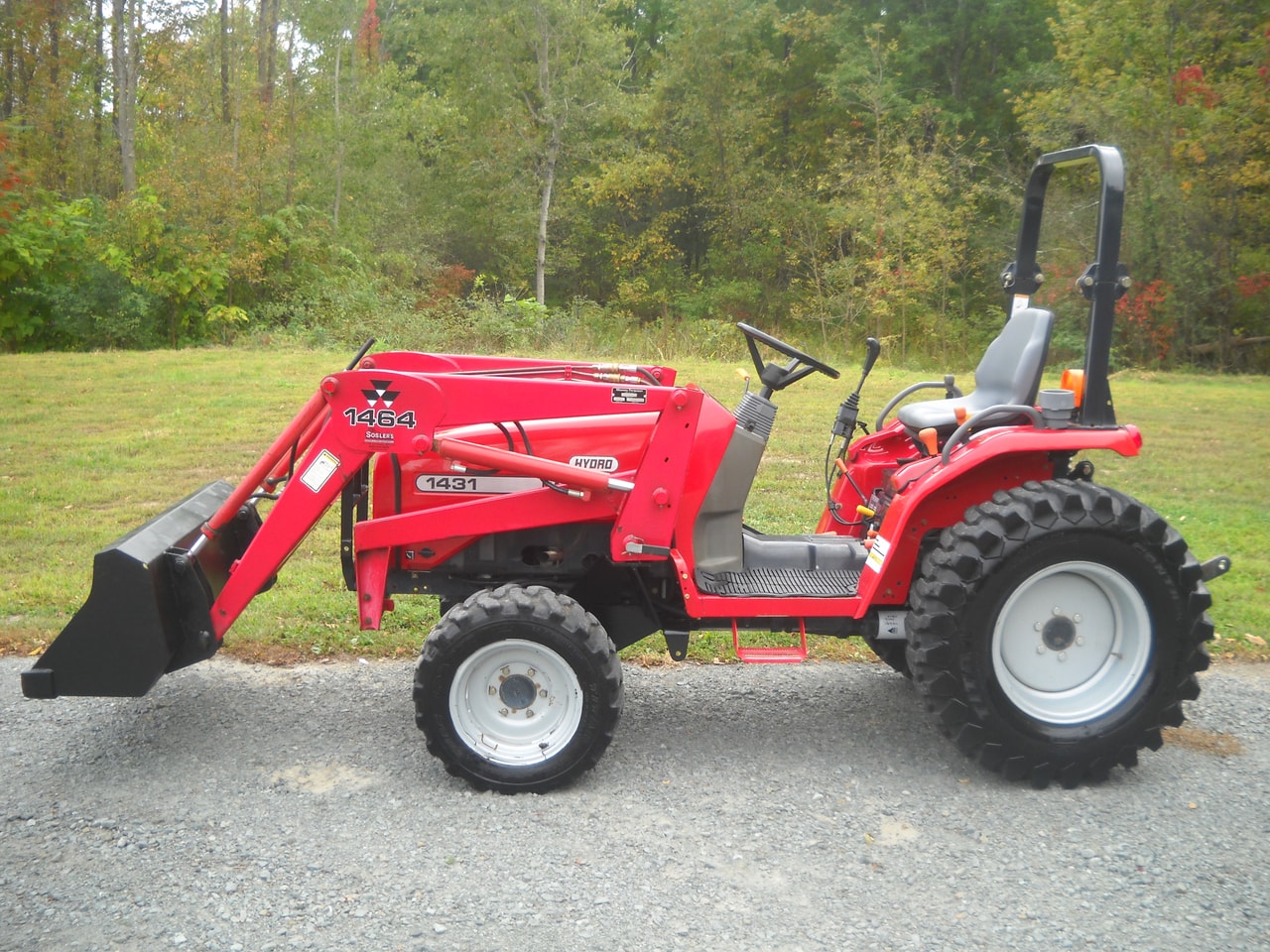

Massey Ferguson 1431

Last Updated: June 2024

Overview

The Massey Ferguson 1431 is a compact utility tractor designed for a variety of tasks on small farms, estates, and specialty operations. Manufactured by Iseki for Massey Ferguson from 2004 to 2005, this model features a 4-wheel drive chassis with a hydrostatic transmission offering infinite gear ranges for both forward and reverse movement. The power is provided by an Iseki 3-cylinder, liquid-cooled, 91.4 cubic inch diesel engine with a power output of 33 horsepower, rated at 2600 RPM. The tractor boasts power steering, making maneuverability easier for the operator. On the dimensions front, it measures 116.5 inches in length, with a minimum width of 51 inches, and a height of 79.3 inches. It weighs in at 2356 pounds. Additionally, it offers a Category I rear hitch system. The tractor rolls on industrial front tires, and its hydraulic system operates with an open center design. This model is suitable for various tasks, including mowing, tillage, and material handling, among others.
Show more...

Key Specifications

Category: Utility

Power Output: 33

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2356

Fuel Type: Diesel

Massey Ferguson 1431 vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
3
Displacement (ci)
91.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
33

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
116.5
Width (in)
51 (min)
Height (in)
79.3
Operating Weight (lb)
2356

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
2005
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12V
Brake Type
-
Hydraulic System Type
Open center
