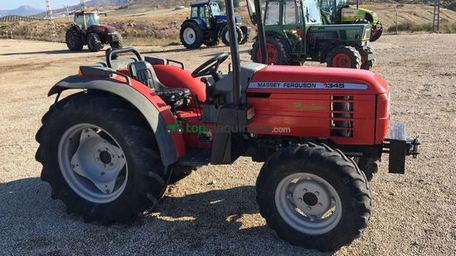

Massey Ferguson 1345

Last Updated: June 2024

Overview

The Massey Ferguson 1345 is a compact utility tractor known for its robustness and adaptability to a range of tasks. Manufactured from 2002 to 2004, it features a 4x4 MFWD 4WD chassis that provides the necessary traction for various farming duties. This model is geared with a 12-speed synchro shuttle transmission, complementing the user-friendly hydrostatic power steering system. It’s powered by a Mitsubishi 4-cylinder, liquid-cooled, turbocharged engine which produces 42 horsepower at a rated RPM of 3000. Notably, it provides ample ground clearance at 15 inches, which allows for excellent maneuverability over uneven terrain. The tractor's operational weight is 2227 lbs, and it measures 119.2 inches in length, with a height of 51.2 inches at the steering wheel and 47.2 inches at the hood. Tire configurations include standard agricultural and optional lawn/turf setups, giving owners the flexibility to tailor the tractor to their specific land conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 42

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 2227

Massey Ferguson 1345 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Wastegate turbocharged
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
3000
Power Output (hp)
42

Transmission

Type
Synchro shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
119.2
Width (in)
-
Height (in)
51.2 (steering wheel), 47.2 (hood)
Operating Weight (lb)
2227

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag standard | Front: 7.50-16. Rear: 360/70R24. Ag optional | Front: 7.00-12. Rear: 320/70R20. Lawn/turf | Front: 27x8.50-15. Rear: 38x14.00-20
Manufacture - End Year
2004
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
