Massey Ferguson 1250

Last Updated: June 2024

Overview

The Massey Ferguson 1250 is a 2WD or 4WD compact utility tractor, part of the 1200 series, produced by Iseki under the Massey Ferguson brand from 1992 to 2002. It is powered by a 91.4 cubic inch (1.5 L) Iseki TK532 three-cylinder diesel engine that delivers 34 horsepower at 2600 RPM. Featuring a liquid cooling system, power-assist steering, and wet disc brakes, this tractor was designed for various agricultural tasks. With a two-post ROPS operator station, it ensures safety while operating the tractor. The transmission system offers 16 forward and reverse gears, providing versatility and efficient power transmission for different working conditions. The tractor's three-point hitch system with Category I aids in a variety of attachments and implements. The hydraulic system with an open center type adds to the functionality with a substantial lifting capacity.
Show more...

Key Specifications

Category: Utility

Power Output: 34

Transmission: Synchro Shuttle

Drive Type: Four-wheel Drive (4WD)

Operating Weight: 2690 (2WD) to 2746 (4WD)

Fuel Type: Diesel

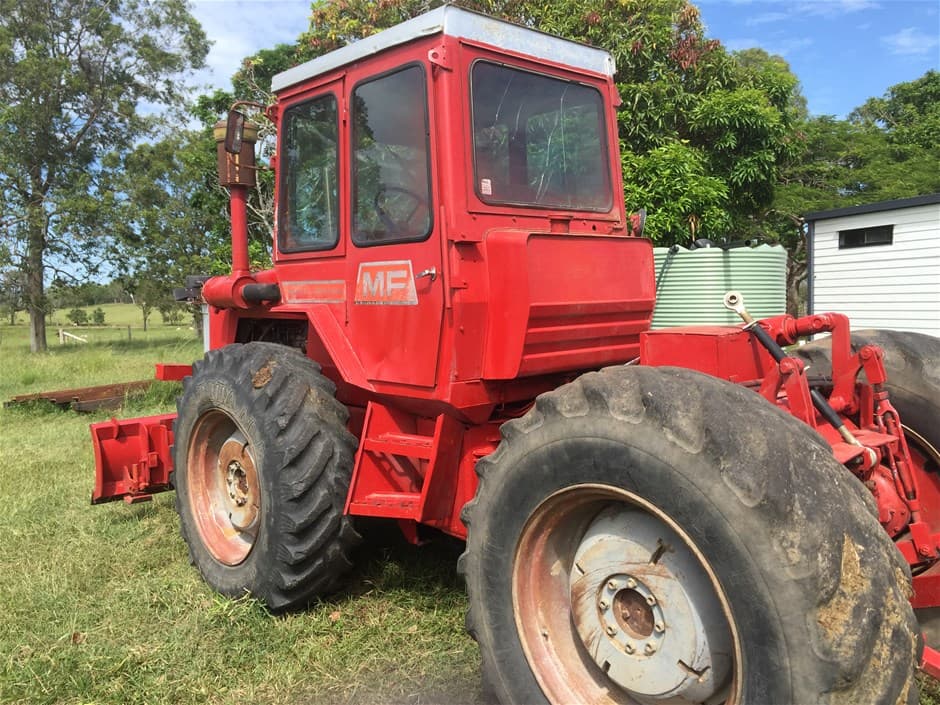

Image Gallery

Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor Massey Ferguson 1250 Tractor

Massey Ferguson 1250 vs. Similar Tractors

Power Output
Below Average
Greater than 30% of similar tractors.
Hitch Capacity
Average
Greater than 52% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
TK532
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspirated
Cylinders
3
Displacement (ci)
91.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
34

Transmission

Type
Synchro Shuttle
Forward Gears
16
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
121.7
Width (in)
55.1
Height (in)
85
Operating Weight (lb)
2690 (2WD) to 2746 (4WD)

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic clutch (optional)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1960 (Mid PTO)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
Four-wheel Drive (4WD)
Steering Type
Power Assist
Coolant Capacity (qts)
6.92
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
2865
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
Wet Disc
Hydraulic System Type
Open Center
