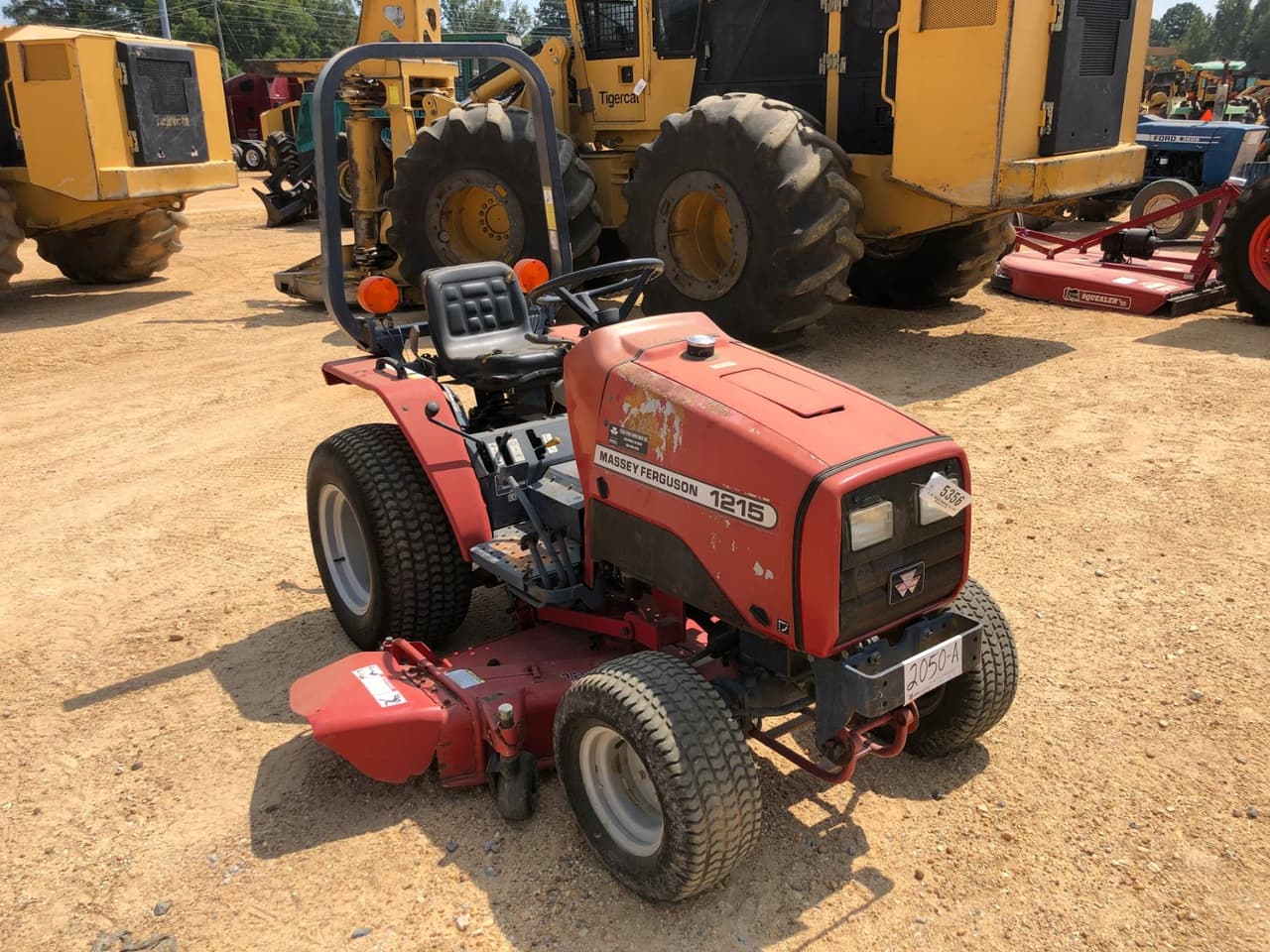

Massey Ferguson 1215

Last Updated: June 2024

Overview

The Massey Ferguson 1215 is a compact utility tractor that was manufactured by Massey Ferguson from 1996 to 2003. It is equipped with a 61.4 cubic inch Iseki E3100 diesel engine producing 18 horsepower with a rated RPM of 2500. The cooling system of the tractor has a capacity of 5.4 quarts for liquid coolant. The tractor's chassis is a 4x2 2WD with manual steering. It has a 6-speed unsynchronized gear transmission with 6 forward and 2 reverse gears, indicating versatility for different tasks. The tractor operates with a 1460 pound shipping weight for the gear-driven 2WD variant, and boasts a ground clearance of 11 inches. Its dimensions measure 100.2 inches in length and 39.8 inches in width, with ROPS standing at a height of 77 inches. It employs an open center hydraulic system and Category I rear hitch, but the lift capacity is unknown. This model features a rollover protection structure (ROPS) for operator safety. The Massey Ferguson 1215 is designed to facilitate a variety of tasks in a compact form factor suitable for small-acreage farming and estate maintenance.
Show more...

Key Specifications

Category: Utility

Power Output: 18

Drive Type: 2WD

Operating Weight: 1460 (Shipping Weight for 2WD gear)

Fuel Type: Diesel

Massey Ferguson 1215 vs. Similar Tractors

Power Output
Poor
Greater than 7% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3100
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect Injection
Cylinders
3
Displacement (ci)
61.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
18

Transmission

Type
-
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
100.2
Width (in)
39.8
Height (in)
77 (Height of ROPS)
Operating Weight (lb)
1460 (Shipping Weight for 2WD gear)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
5.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2003
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Rollover Protection Structure)
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
