Massey Ferguson 1165

Last Updated: June 2024

Overview

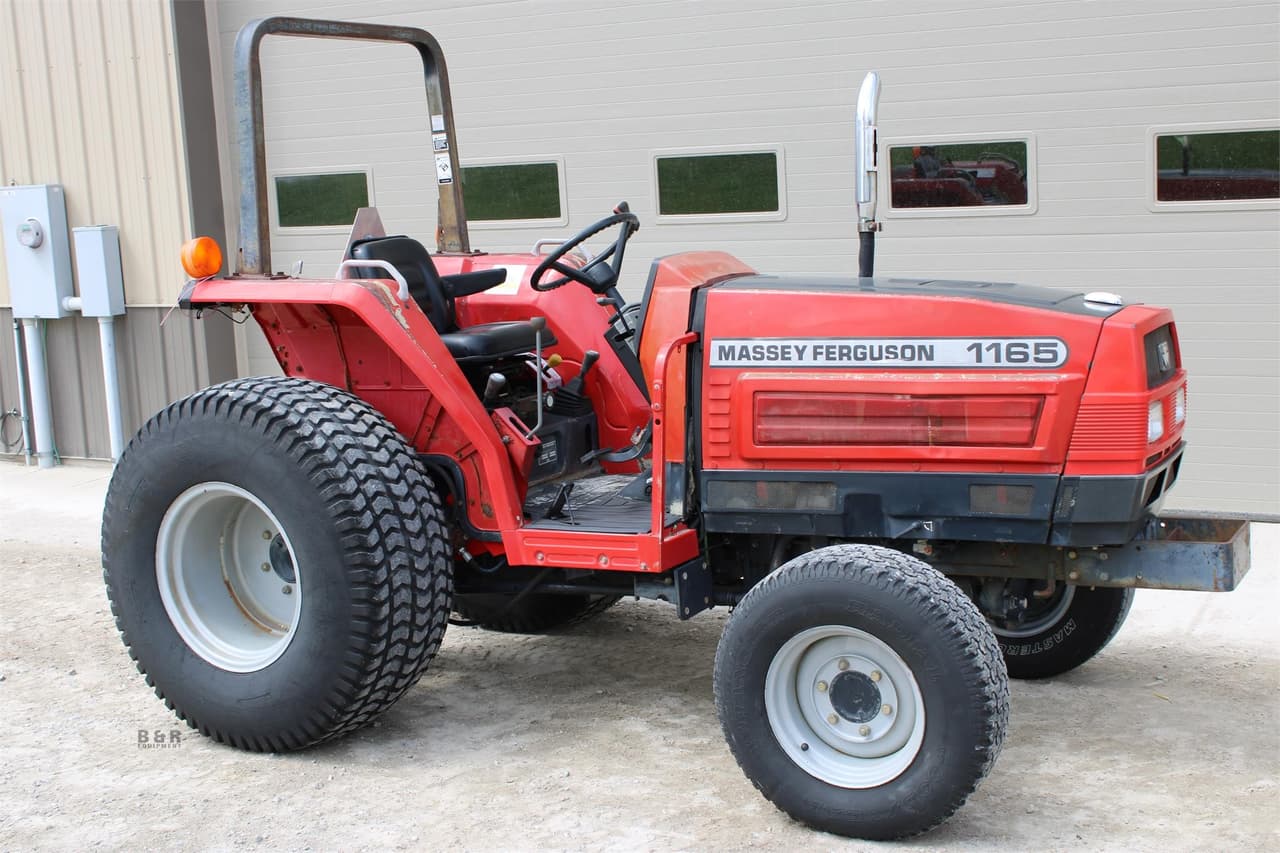

The Massey Ferguson 1165 is a tractor that is equipped with a liquid-cooled, 134.1 ci Iseki E4CD diesel engine, boasting a power output of 44 hp and a torque of 102.5 lb-ft at 1500 rpm. It has a synchronized/hydrostatic transmission with options for 16 forward and reverse gears or infinite forward and reverse gears. The tractor's standard tire configuration includes 9.5-16 front and 13.6-28 rear agricultural tires. It has an engine rated RPM of 2500 and a gross weight of 4280 lbs. The tractor's starting system operates on a 12-volt electric starter. It has a compression ratio of 21.8:1, and its engine's firing order is 1-3-4-2. This tractor also comes with a Category 3 hitch, and offers PTO speeds of 540 and 2000 rpm at the rear and mid PTO connections, respectively. The tractor's capabilities and designed uses are suitable for a variety of tasks in the agricultural sector.
Show more...

Key Specifications

Power Output: 44

Transmission: Synchronized/Hydrostatic

Operating Weight: 4280

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4CD
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2500
Power Output (hp)
44

Transmission

Type
Synchronized/Hydrostatic
Forward Gears
16/Infinite
Reverse Gears
16/Infinite
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
4280

Power Take-Off (PTO)

PTO Type
Rear: 540 (1.375), Mid: 2000
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
11.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
