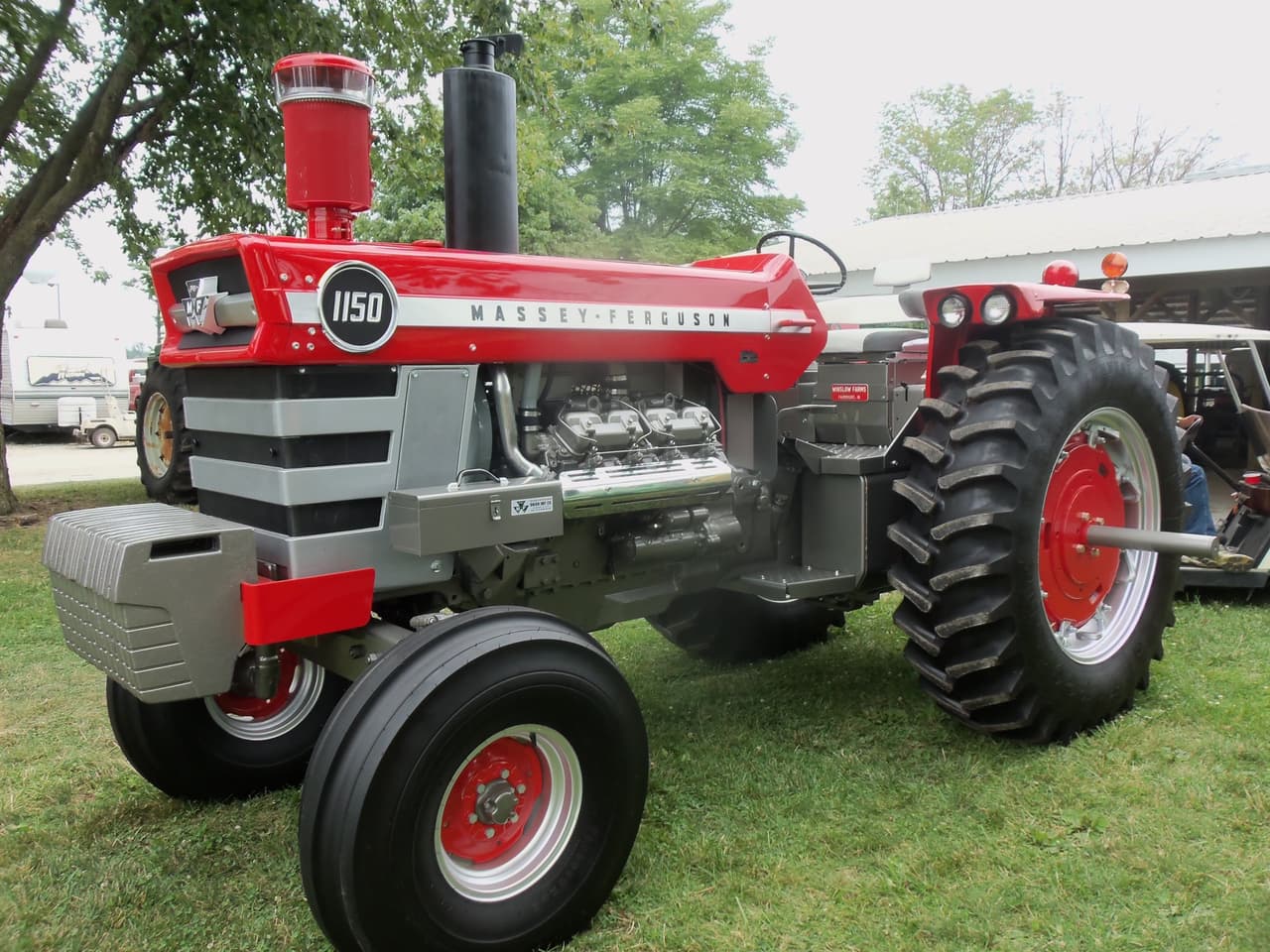

Massey Ferguson 1150

Last Updated: June 2024

Overview

The Massey Ferguson 1150, produced from 1970 to 1972, serves as a durable and robust choice for agricultural tasks specific to row-crop farming. Powering this machinery is a Perkins AV8.510 V8 diesel engine, with a displacement of 503.8 cubic inches, delivering 146 horsepower and a torque of 538.7 ft-lb at lower rpm levels. The tractor's power shift transmission offers 12 forward and 4 reverse gears, allowing for a variety of speeds and task-specific power delivery. With an operating weight of 13,590 pounds and optional cab, the MF 1150 provides a mix of comfort and performance. This tractor is additionally equipped with power steering, 2WD, and a Category II hitch, supporting a wide range of attachments and implements for versatile farm work.
Show more...

Key Specifications

Category: Row Crop

Power Output: 146

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 13590

Fuel Type: Diesel

Image Gallery

Massey Ferguson 1150 Tractor Massey Ferguson 1150 Tractor Massey Ferguson 1150 Tractor Massey Ferguson 1150 Tractor Massey Ferguson 1150 Tractor Massey Ferguson 1150 Tractor

Massey Ferguson 1150 vs. Similar Tractors

Power Output
Average
Greater than 51% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AV8.510
Cooling Type
Liquid-cooled
Cylinder Orientation
V (V-8)
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
8
Displacement (ci)
503.8
Bore (in)
4.25
Stroke (in)
4.49
Rated RPM
2200
Power Output (hp)
146

Transmission

Type
Partial power shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
171
Width (in)
94
Height (in)
113.5
Operating Weight (lb)
13590

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
48
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1972
Hitch Type
Category II
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or Cab (optional)
Starter Type
Electric
Brake Type
Differential hydraulic disc
Hydraulic System Type
Closed center
