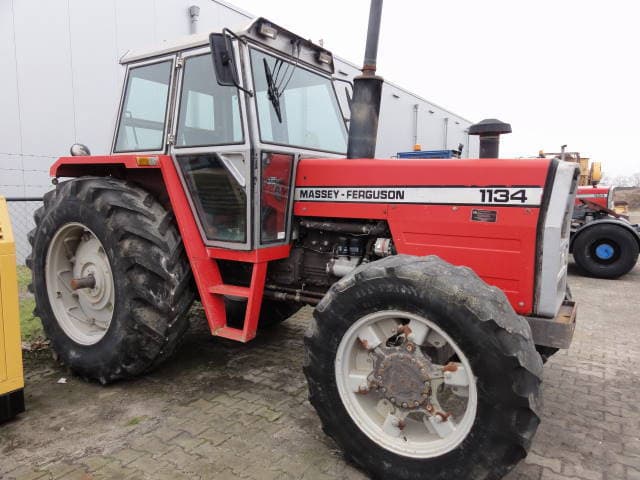

Massey Ferguson 1134

Last Updated: June 2024

Overview

The Massey Ferguson 1134 is a 2WD row-crop tractor, oriented towards utility work on the farm. It features a robust and efficient Perkins AT6.354.4 six-cylinder turbocharged diesel engine that offers 132 horsepower and a peak torque of 340 lb-ft at 1600 RPM. Its partially synchronized transmission provides 12 forward gears and 4 reverse gears to suit various tasks. With a power steering system, the tractor is designed to handle with ease. The solid chassis supports a wheelbase of 110 inches, and the tractor weighs between 11,135 to 12,458 pounds. On the comfort side, this model's dimensions such as a length of 185 inches, width of 95 inches, and two height options due to cab and exhaust distinctions, with 114.2 inches for the cab and 124.4 inches for the exhaust, make it a substantial presence in the field. Standard tires come in sizes of 11.00-16 in the front and 18.4-38 at the rear, ensuring a strong grip and good performance under various conditions.
Show more...

Key Specifications

Category: Row Crop

Power Output: 132

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 11135 (2WD)

Fuel Type: Diesel

Massey Ferguson 1134 vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT6.354.4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
353.9
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
132

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
185
Width (in)
95
Height (in)
114.2 (cab), 124.4 (exhaust)
Operating Weight (lb)
11135 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agri
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
