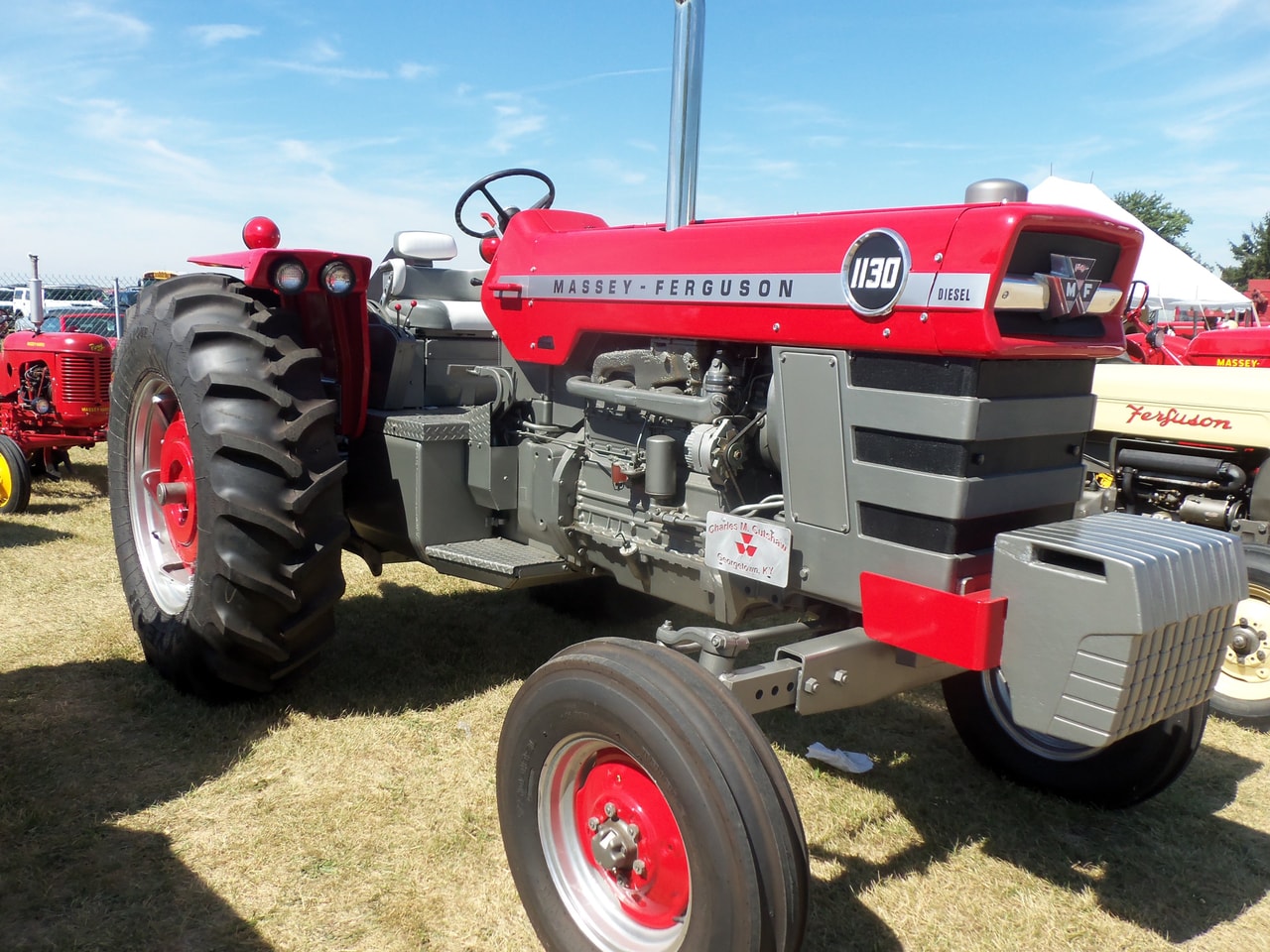

Massey Ferguson 1130

Last Updated: June 2024

Overview

The Massey Ferguson 1130 is a row-crop tractor that was manufactured by Massey Ferguson between 1964 and 1972. Designed for a variety of farm tasks, the tractor is known for its power shift transmission with 12 forward and 4 reverse gears. Powering the 1130 is a 354 cubic inch, six-cylinder Perkins AT6.345 diesel engine, delivering 120 horsepower at 2200 rpm. It also comes equipped with power-assist steering, hydraulic disc brakes, and the option of either an open operator station or a cab. Notably indicative of its period, the MF 1130 was regarded for its robust construction, sizable fuel capacity of 50 US gallons, and an operating weight of approximately 13,560 pounds. Despite its age, this tractor model remains a notable piece of agricultural machinery history.
Show more...

Key Specifications

Category: Row Crop

Power Output: 120

Transmission: Two-speed power shift

Drive Type: 2WD

Operating Weight: 13560

Fuel Type: Diesel

Image Gallery

Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor Massey Ferguson 1130 Tractor

Massey Ferguson 1130 vs. Similar Tractors

Power Output
Average
Greater than 36% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT6.345
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
354 ci
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
120

Transmission

Type
Two-speed power shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
165
Width (in)
-
Height (in)
74.6 (steering wheel) | 113.5 (cab)
Operating Weight (lb)
13560

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power assist
Coolant Capacity (qts)
22
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1972
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic disc
Hydraulic System Type
Closed center
