Massey Ferguson 1114

Last Updated: June 2024

Overview

The Massey Ferguson 1114 is a row-crop tractor that was built by Massey Ferguson. It features a powerful Perkins A6.354 6-cylinder diesel engine with a liquid cooling system, capable of delivering 110 horsepower. With a displacement of 353.9 cubic inches and a bore and stroke of 3.875 inches by 5.00 inches, this tractor is designed to handle demanding farm tasks. Its 12-speed partially synchronized transmission offers versatility in various field applications, and it operates at a rated RPM of 2400. The chassis is a simple 4x2 2WD configuration, and the tractor is equipped with power steering for easier maneuverability. It has a robust wheelbase of 110 inches and provides a range of tire options for different agricultural needs. Weighing between 10694 and 11775 pounds, the Massey Ferguson 1114 is built to be both durable and reliable for farmers who need a strong workhorse for their operation.
Show more...

Key Specifications

Category: Row Crop

Power Output: 110

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 10694

Fuel Type: Diesel

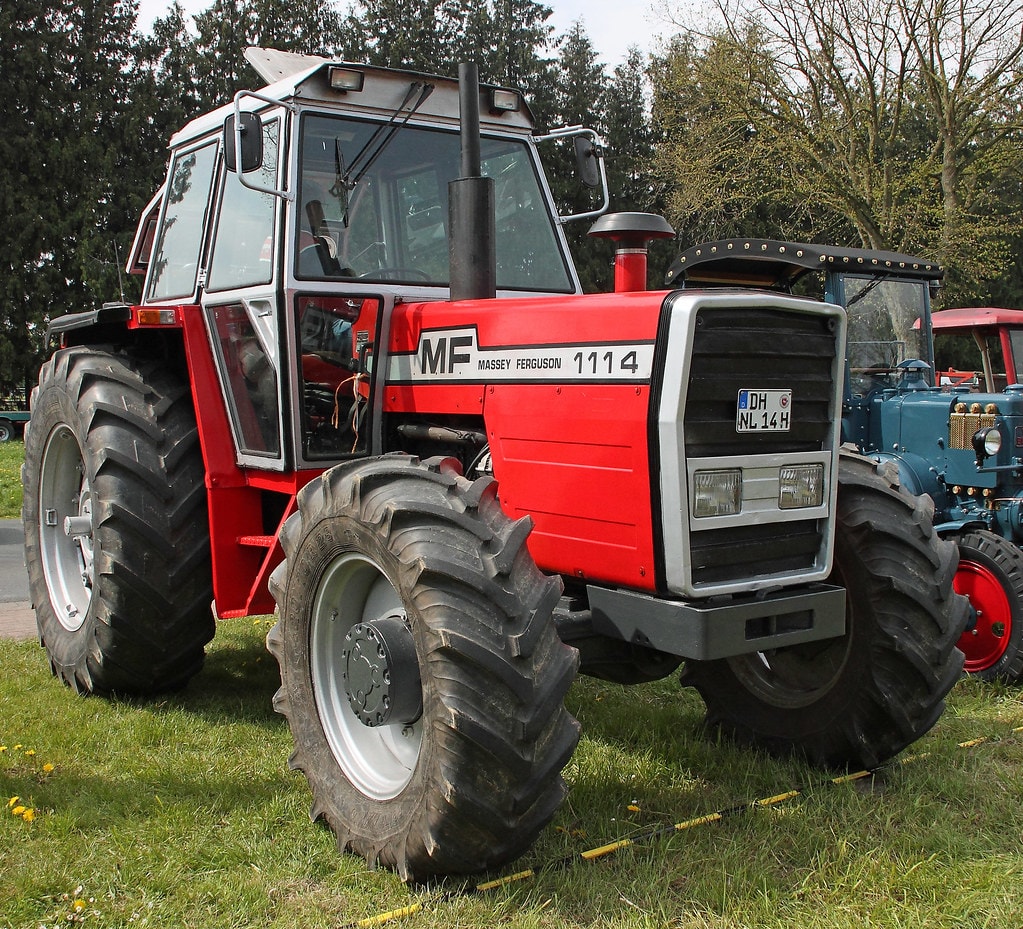

Image Gallery

Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor Massey Ferguson 1114 Tractor

Massey Ferguson 1114 vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Operating Weight
Average
Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A6.354
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
353.9
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
110

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
185
Width (in)
95
Height (in)
114.2 (height to cab), 124.4 (height to exhaust)
Operating Weight (lb)
10694

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag front: 11.00-16 and 13.6-28, Ag rear: 18.4-38
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
-
