Massey Ferguson 1085

Last Updated: June 2024

Overview

The Massey Ferguson 1085 is a 2WD row-crop tractor that was manufactured by Massey Ferguson from 1973 to 1978. Outfitted with a 318 cubic inch (5.2 L) four-cylinder diesel Perkins A4.318 engine, it offers a choice between a Multi-Power partial power shift transmission with 12 forward and 4 reverse gears or a gear type transmission with 8 forward and 2 reverse gears. The tractor is designed with power steering and mechanical disc brakes, with the option of an open operator station or a cab with air conditioning. The tractor's operating weight stands at 11,540 pounds, and it features a three-point hitch with a lift capacity of 3,550 pounds. It can be equipped with a Massey Ferguson 246 loader, addressing various farming needs.
Show more...

Key Specifications

Category: Row Crop

Power Output: 81

Transmission: Partial power shift; Gear

Drive Type: 2WD

Operating Weight: 11540

Fuel Type: Diesel

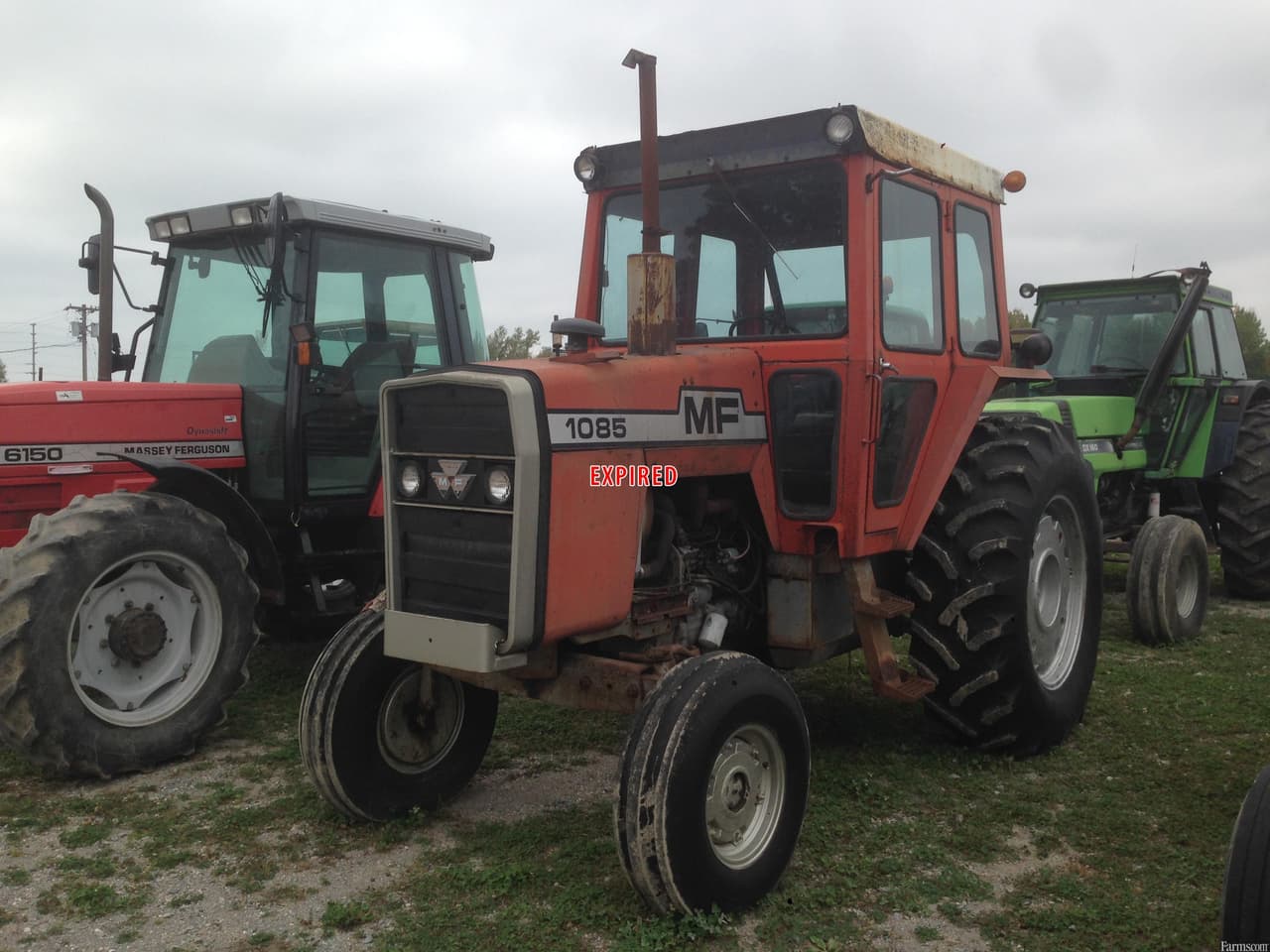

Image Gallery

Massey Ferguson 1085 Tractor Massey Ferguson 1085 Tractor Massey Ferguson 1085 Tractor Massey Ferguson 1085 Tractor Massey Ferguson 1085 Tractor Massey Ferguson 1085 Tractor

Massey Ferguson 1085 vs. Similar Tractors

Power Output
Below Average
Greater than 12% of similar tractors.
Hitch Capacity
Average
Greater than 34% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.318
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement (ci)
318
Bore (in)
4.5
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
81

Transmission

Type
Partial power shift; Gear
Forward Gears
12 (Multi-Power); 8 (Gear type)
Reverse Gears
4 (Multi-Power); 2 (Gear type)
Total Gears
-

Dimensions

Length (in)
153.9
Width (in)
114.2
Height (in)
79.1 (steering wheel height)
Operating Weight (lb)
11540

Power Take-Off (PTO)

PTO Type
Live; Independent (option)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000 (optional)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
16.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1978
Hitch Type
Three-Point Hitch
Hitch Category
Category II/III
Hitch Position
Rear
Hitch Capacity (lb)
3550
Operator Station Type
Open; Cab (optional)
Starter Type
Electric
Brake Type
Mechanical disc
Hydraulic System Type
-
