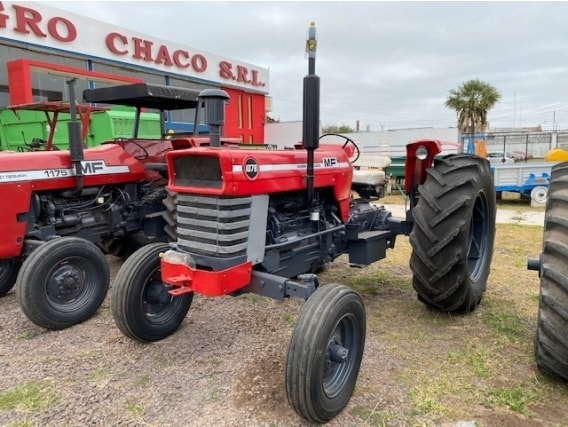

Massey Ferguson 1078

Last Updated: June 2024

Overview

The Massey Ferguson 1078 is a row-crop tractor known for its straightforward, robust build, and dependable performance in the field. Powered by a Perkins A.6-305 six-cylinder diesel engine, it offers a power output of 75 horsepower, and operates at a rated RPM of 2000. The tractor features a liquid-cooled engine with a displacement of 305 cubic inches. A power steering system eases maneuverability, especially during longer work periods. Its transmission is gear-based with 8 forward and 2 reverse gears, allowing for a variety of speeds tailored to different tasks. The 4x2 chassis (two-wheel drive) aids in maintenance and fuel economy. As for measurements, the Massey Ferguson 1078 has a length of 144.9 inches, a width of 86.6 inches, and a steering wheel height of 70.9 inches, with a hefty operating weight of 10046 pounds. It was designed primarily for agricultural use, as evidenced by the type of tires and its considerable ground clearance of 21.7 inches. The other detailed specs of this tractor include a front tire size of 7.50x18 and a rear tire size of 18.4x34, supporting its role in row-crop operations. While some specifications such as PTO speed, hydraulic system type, and exact hitch details are not provided, the available information confirms this tractor as a valuable asset for a range of farming applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 75

Transmission: Gear

Drive Type: 2WD

Operating Weight: 10046

Fuel Type: Diesel

Massey Ferguson 1078 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Average
Greater than 34% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A.6-305
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
305
Bore (in)
3.58
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
75

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
144.9
Width (in)
86.6
Height (in)
70.9 (steering wheel height)
Operating Weight (lb)
10046

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
15.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
