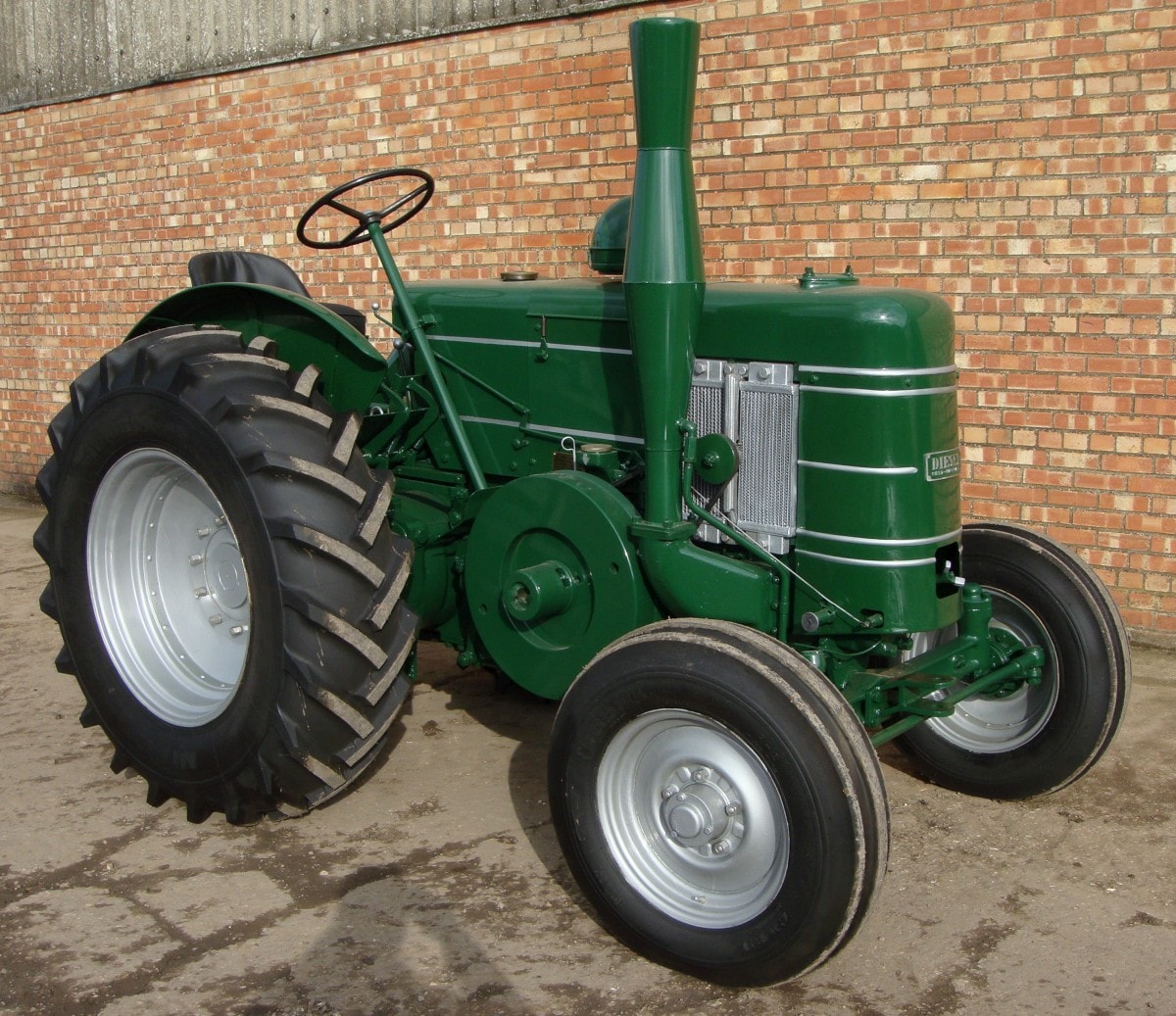

Marshall Field Marshall Series III

Last Updated: September 2024

Overview

The Marshall Field Marshall Series III is a powerful utility tractor designed for standard tread applications. This 2WD tractor features a sturdy 4x2 chassis and manual steering, making it well-suited for various farm tasks. It comes equipped with a gear transmission that offers 3 forward gears and 1 reverse gear, providing flexibility for different working conditions.

Under the hood, the Field Marshall Series III boasts a robust single-cylinder diesel engine manufactured by Marshall. With a very high engine displacement of 310.4 ci, this tractor packs a punch despite its simple design. The engine's bore measures 6.625 inches, while the stroke is 9 inches. Interestingly, it operates at a very low rated speed of 750 rpm, which is unusual compared to most tractors. This tractor also features a Category III hitch, allowing it to handle heavy-duty implements with ease.
Show more...

Key Specifications

Category: Utility

Transmission: Gear

Drive Type: 2WD

Fuel Type: Diesel

Marshall Field Marshall Series III vs. Similar Tractors

Engine Displacement

The Engine Displacement for the Marshall Field Marshall Series III is Above Average. It is greater than 85% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Marshall Field Marshall Series III is Poor. It is greater than 1% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Marshall
Fuel Type
Diesel
Cylinders
1
Displacement
310 ci (5.1 L)
Bore
6.62 in (168.3 mm)
Stroke
9.00 in (228.6 mm)
Rated RPM
750

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
