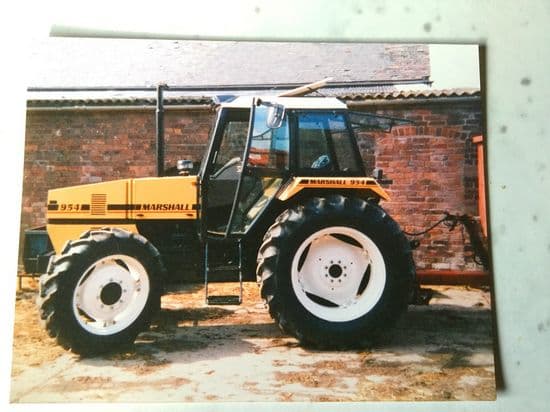

Marshall 954

Last Updated: September 2024

Overview

The Marshall 954 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Perkins T4.236 diesel engine with 4 cylinders and 94.5 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The tractor has a 15-speed forward and 5-speed reverse transmission, giving the driver lots of options for different tasks.

This tractor is big and sturdy, measuring 155.3 inches long, 77 inches wide, and 104 inches tall. It has good ground clearance at 17 inches, which helps it move easily over rough ground. The Marshall 954 has a three-point hitch at the back, which is great for attaching different farm tools. It also has hydrostatic power steering, making it easy to control despite its size. The engine is liquid-cooled and has a coolant capacity of 15.3 quarts, which helps keep it running smoothly in hot weather.
Show more...

Key Specifications

Power Output: 94 hp (70.5 kW)

Drive Type: 4WD

Fuel Type: Diesel

Marshall 954 vs. Similar Tractors

Power Output

The Power Output for the Marshall 954 is Average. It is greater than 69% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Marshall 954 is Average. It is greater than 57% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Marshall 954 is Average. It is greater than 34% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Model
T4.236
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
236 ci (3.9 L)
Bore
3.88 in (98.4 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2200
Power Output
94 hp (70.5 kW)

Transmission

Forward Gears
15
Reverse Gears
5

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
