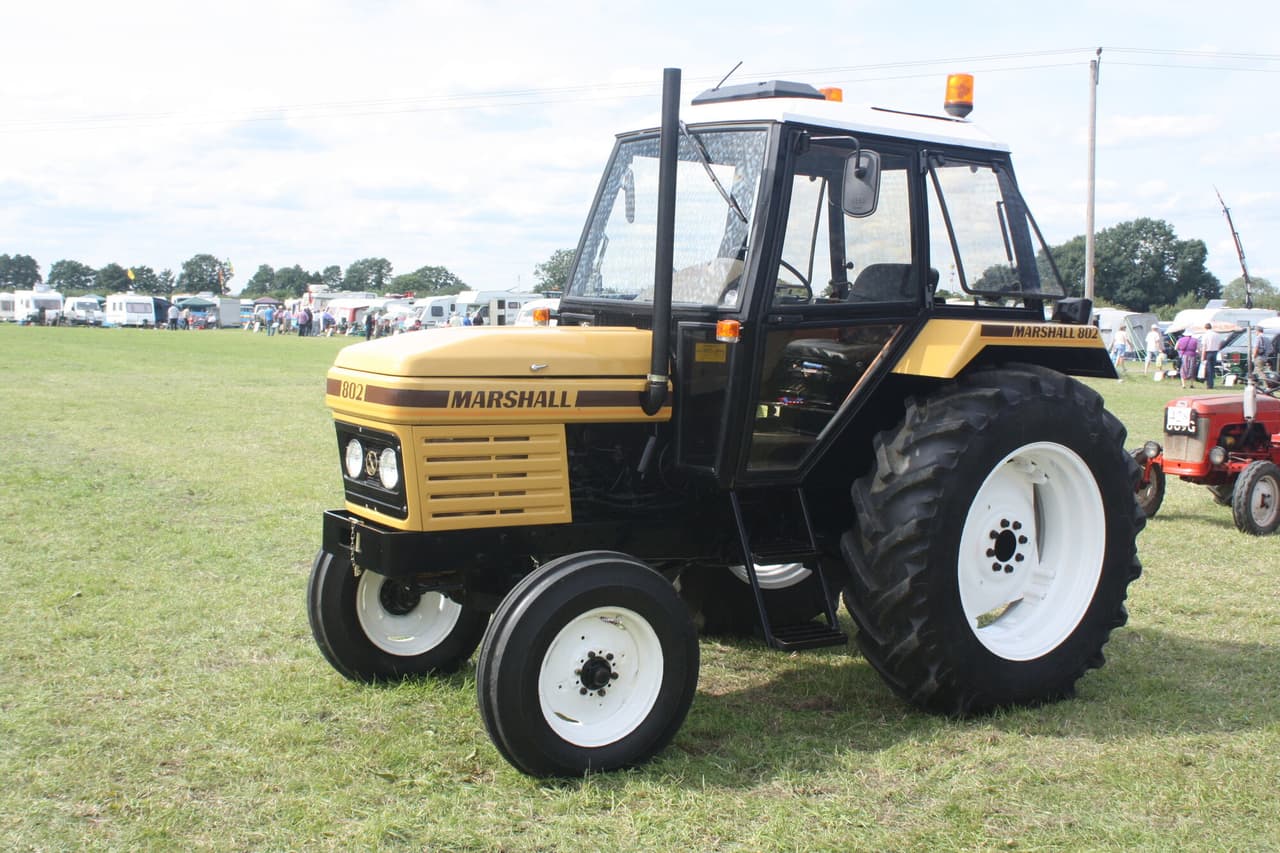

Marshall 752

Last Updated: September 2024

Overview

The Marshall 752 is a sturdy 2WD tractor built for farm work. It has a 4x2 chassis and uses hydrostatic power steering, making it easy to control. The tractor comes with a manual transmission that offers 15 forward gears and 5 reverse gears, giving farmers plenty of options for different tasks.

Under the hood, the Marshall 752 has a Perkins 4.236 engine. This diesel engine is liquid-cooled and has 4 cylinders. It can produce 74 hp at 2200 rpm, which is enough power for most farm jobs. The engine has a displacement of 236 ci, which is about average for tractors of this size. The tractor's size is good for getting around the farm, measuring 153.4 inches long, 77 inches wide, and 104 inches tall. It has a wheelbase of 88.5 inches and 18 inches of ground clearance, helping it move over rough ground. The Marshall 752 also comes with a Category II hitch, useful for attaching various farm tools.
Show more...

Key Specifications

Power Output: 74 hp (55.2 kW)

Transmission: Manual

Drive Type: 2WD

Fuel Type: Diesel

Marshall 752 vs. Similar Tractors

Power Output

The Power Output for the Marshall 752 is Average. It is greater than 58% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Marshall 752 is Average. It is greater than 57% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Marshall 752 is Average. It is greater than 34% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Model
4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement
236 ci (3.9 L)
Bore
3.88 in (98.4 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2200
Power Output
74 hp (55.2 kW)

Transmission

Type
Manual
Forward Gears
15
Reverse Gears
5
Total Gears
20

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
