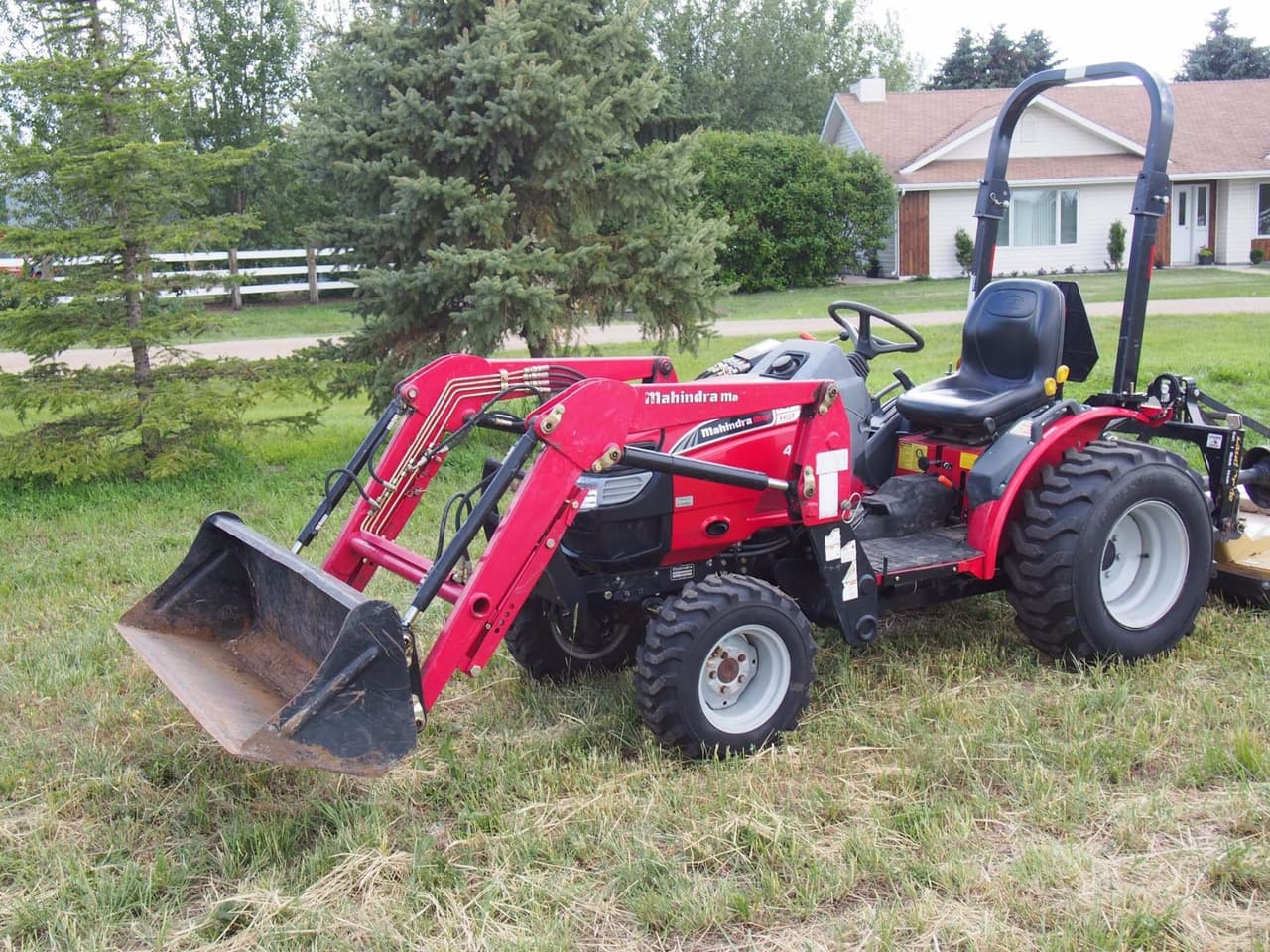

Mahindra Max 28 XL

Last Updated: June 2024

Overview

The Mahindra Max 28 XL is a sub-compact utility tractor, well-suited for a range of tasks around a small farm or estate. Equipped with a 28 horsepower Mitsubishi S3L2 diesel engine, it boasts an engine displacement of 80.4 cubic inches and operates at a rated RPM of 2600. The tractor features a 4x4 MFWD 4WD chassis and comes with hydrostatic power steering, providing ease of maneuverability. The Max 28 XL can have either an 8-speed synchronized shuttle transmission or a hydrostatic transmission with infinite (2-range) forward and reverse capabilities. A notable aspect of this tractor is its versatility in tire options, offering standard, lawn/turf, and industrial types for various operational needs. It has an operating weight between 1,819 to 1,863 pounds, depending on the transmission type, and the dimensions are relatively compact with a length of 109.3 inches and a width of 54.3 inches, suitable for tight spaces. The tractor is also fitted with a rear-type 1 hitch and an open center hydraulic system.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 28

Transmission: synchronized shuttle / hydrostatic

Drive Type: 4WD

Operating Weight: 1819 (Gear), 1863 (Hydro)

Fuel Type: diesel

Mahindra Max 28 XL vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.071
Stroke (in)
3.622
Rated RPM
2600
Power Output (hp)
28

Transmission

Type
synchronized shuttle / hydrostatic
Forward Gears
8
Reverse Gears
8
Total Gears
8

Dimensions

Length (in)
109.3
Width (in)
54.3
Height (in)
-
Operating Weight (lb)
1819 (Gear), 1863 (Hydro)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
ag / lawn/turf / industrial
Manufacture - End Year
-
Hitch Type
Rear Type: 1
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
