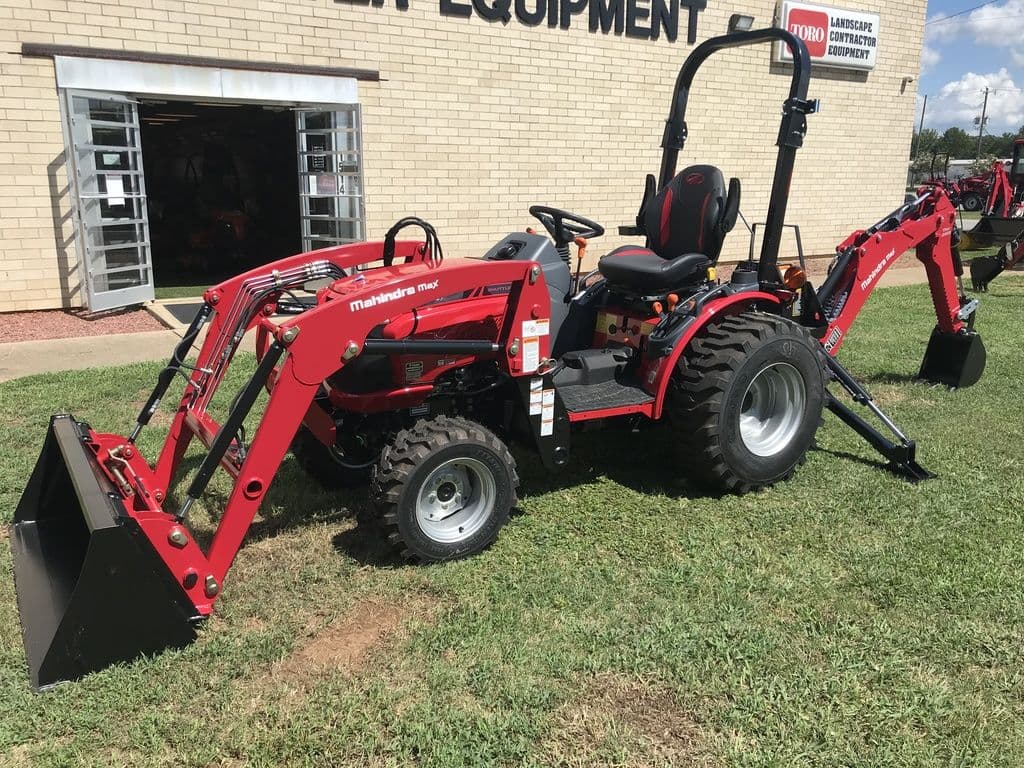

Mahindra Max 26XLT

Last Updated: June 2024

Overview

The Mahindra Max 26XLT is a compact utility tractor equipped for a variety of tasks around the farm or homestead. Featuring a 25.9 horsepower Mitsubishi S3L2 engine powered by diesel fuel, it can handle both power and efficiency. The tractor offers two types of transmission—a hydrostatic type with infinite (2-range) forward and reverse gears and a synchronized shuttle with 8 forward and reverse gears, making it versatile in various working conditions. The engine is liquid-cooled and provides enough torque at a rated RPM of 2500. The standard ag tires are sized at 7-12 for the front and 9.5-16 for the rear, with options for turf and industrial tire configurations as well. The tractor's hydrostatic weight is 1973 lbs, while the shuttle weight is a bit lighter at 1896 lbs. The open center hydraulic system and Category I hitch allow for various attachments to maximize utility. However, specific details such as the steering type, PTO speed, and brake type are not provided and remain unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 25.9

Transmission: Hydrostatic / Synchronized shuttle

Drive Type: 4WD

Operating Weight: 1896 to 1973

Fuel Type: Diesel

Mahindra Max 26XLT vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.
Operating Weight
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2500
Power Output (hp)
25.9

Transmission

Type
Hydrostatic / Synchronized shuttle
Forward Gears
Infinite (2-range) / 8
Reverse Gears
Infinite (2-range) / 8
Total Gears
-

Dimensions

Length (in)
110
Width (in)
54.3
Height (in)
84.3
Operating Weight (lb)
1896 to 1973

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 7-12, Rear: 9.5-16 / Turf: Front: 23x8.5-12, Rear: 33x12.5-15 / Industrial: Front: 23x8.50-12, Rear: 12-16.5
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
