Mahindra Max 26XL

Last Updated: June 2024

Overview

The Mahindra Max 26XL is a 4WD compact utility tractor from the Max series, manufactured by Mahindra. Equipped with a Mitsubishi S3L2 three-cylinder, 80.4 cubic-inch, liquid-cooled diesel engine, which outputs 25.6 horsepower at 2600 rpm, this tractor offers a choice between a synchro-shuttle transmission featuring 8 forward and 8 reverse gears or a hydrostatic transmission with infinite (2-range) forward and reverse gears. The power steering, wet disc brakes ensure effective handling and control, while the foldable ROPS or optional cab provides operator safety and comfort. Other specifications include an operating weight of 1819 to 1863 pounds, a length of 109.3 inches, a width of 54.3 inches, and a maximum lifting capacity of 2205 lbs on the hitch, classified as Category I. With a rated PTO speed of 540 rpm and a middle PTO speed of 2000 rpm, the Max 26XL is suited for a variety of implements, making it versatile for different agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 25.6

Transmission: Synchro-shuttle / Hydrostatic

Drive Type: 4WD

Operating Weight: 1819 to 1863

Fuel Type: Diesel

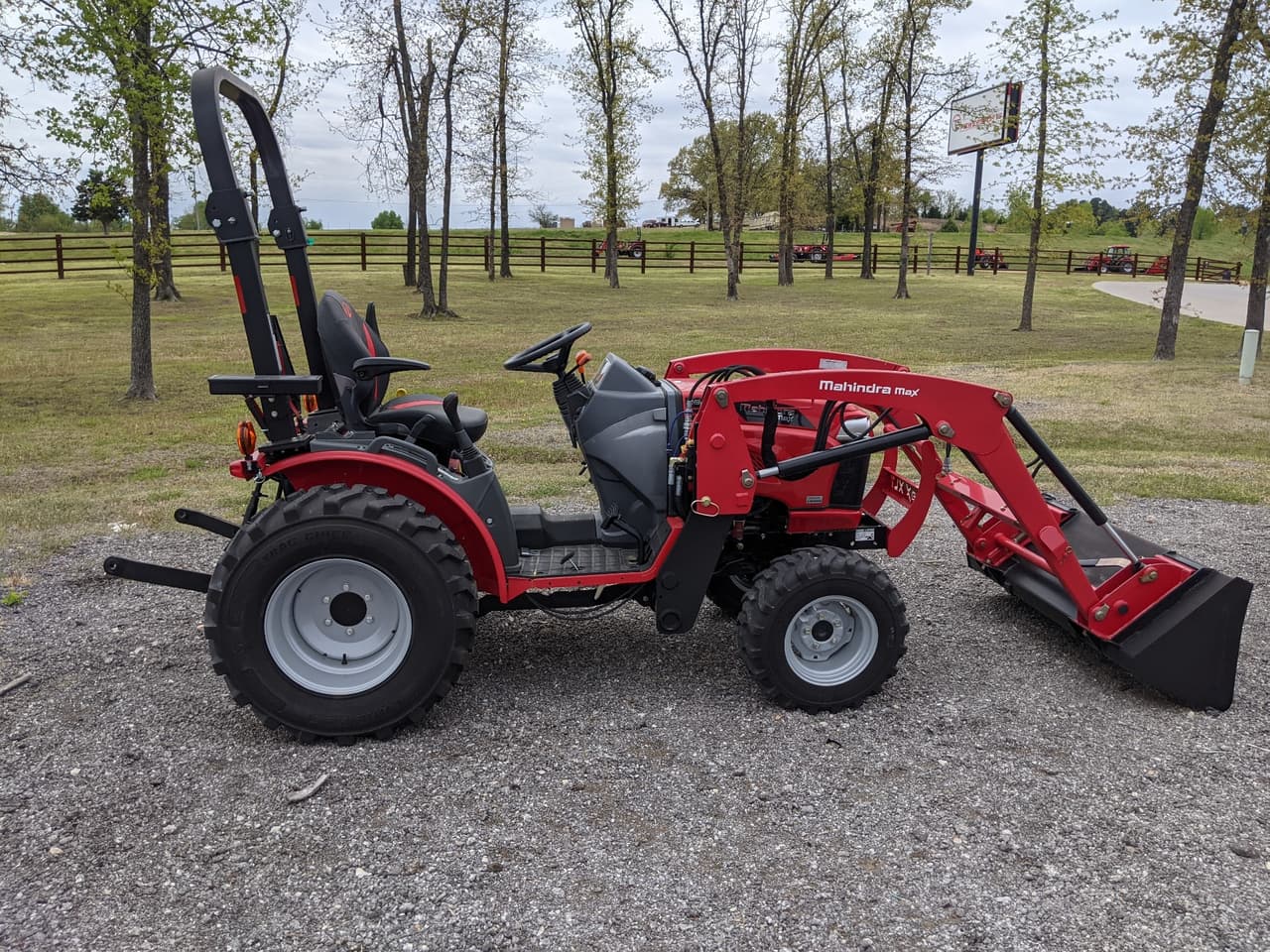

Image Gallery

Mahindra Max 26XL Tractor Mahindra Max 26XL Tractor Mahindra Max 26XL Tractor Mahindra Max 26XL Tractor Mahindra Max 26XL Tractor Mahindra Max 26XL Tractor

Mahindra Max 26XL vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.071
Stroke (in)
3.622
Rated RPM
2600
Power Output (hp)
25.6

Transmission

Type
Synchro-shuttle / Hydrostatic
Forward Gears
8 forward (Synchro-shuttle) / Infinite (2-range) (Hydrostatic)
Reverse Gears
8 reverse (Synchro-shuttle) / Infinite (2-range) (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
109.3
Width (in)
54.3
Height (in)
84.3
Operating Weight (lb)
1819 to 1863

Power Take-Off (PTO)

PTO Type
Transmission (shuttle) or independent (HST)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000 (Middle PTO)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 7x12, Rear: 9.5x16
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
2205
Operator Station Type
Two-post folding ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
