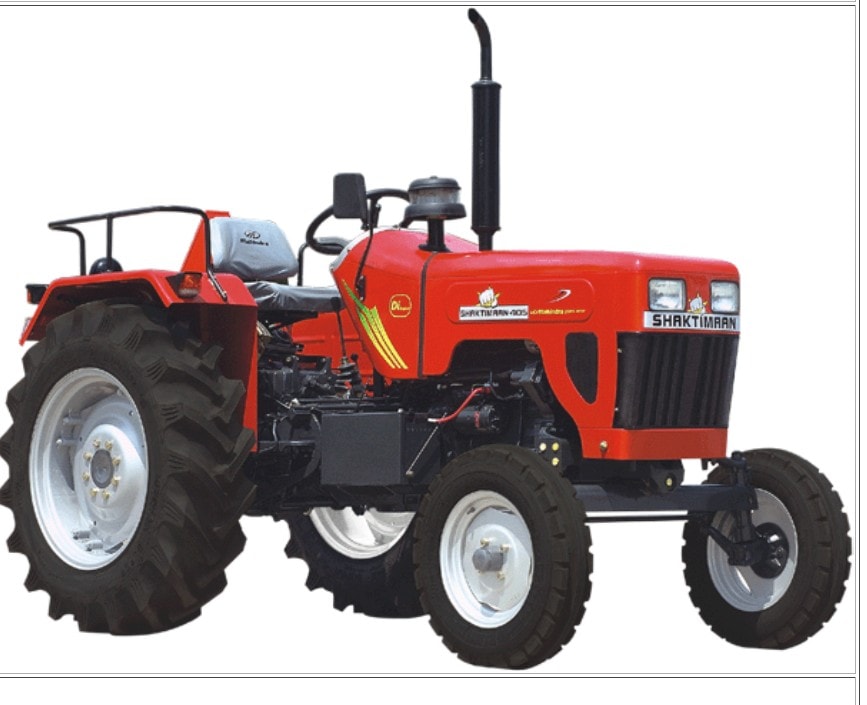

Mahindra Gujarat 405

Last Updated: June 2024

Overview

The Mahindra Gujarat 405 is a diesel-powered tractor equipped with a liquid-cooled, 3-cylinder engine that provides a power output of 40 horsepower, making it a competent machine for various agricultural tasks. It has a displacement of 164.5 cubic inches and operates at a rated RPM of 2200. The tractor's torque output is 104.9 lb-ft, suitable for demanding operations. Transmission-wise, it features a 10-speed gearbox with 10 forward gears and 2 reverse gears, catering to different speed requirements during fieldwork or transportation. The oil bath air cleaner with a cyclonic precleaner, along with a high compression ratio of 18:1, ensures efficient combustion and engine health. The Mahindra Gujarat 405 offers a wheelbase of 80.7 inches, a ground clearance of 13.6 inches, and operating weight of 4,079 lbs, which collectively contribute to the tractor’s stability and ease of operation. The tractor's dimensions, including a length of 135.2 inches, width of 70.3 inches, and height of 79.5 inches, enable it to maneuver agilely around the farm. Standard agricultural tires sized 6.00x16 in the front and 13.6x28 in the rear support the tractor's performance in various terrains.
Show more...

Key Specifications

Power Output: 40

Transmission: 10-speed

Operating Weight: 4079

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Mahindra Gujarat
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
3
Displacement (ci)
164.5
Bore (in)
4.016
Stroke (in)
4.331
Rated RPM
2200
Power Output (hp)
40

Transmission

Type
10-speed
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
135.2
Width (in)
70.3
Height (in)
79.5
Operating Weight (lb)
4079

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
6
Rear Tire Diameter (in)
28
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (agricultural)
Manufacture - End Year
-
Hitch Type
Category 2
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
