Mahindra eMax 22L

Last Updated: June 2024

Overview

The Mahindra eMax 22L is a compact utility tractor powered by a 22 hp Kukje A1100N3 diesel engine with a displacement of 71.7 ci. The engine, which is equipped with an indirect injection fuel system, operates at a rated RPM of 2600 and relies on a liquid cooling system to maintain optimum operating temperatures. Transmission options for this tractor include a 6 forward and 2 reverse gear system, as well as a hydrostatic transmission offering infinite forward and reverse speeds across two ranges. Designed for versatility, the eMax 22L offers multiple tire options, including agriculture, lawn/turf, and industrial. It features a chassis with a wheelbase of 57.5 inches and power steering, which is inferred based on the steering pressure listed as 1566 psi. The tractor has an open center type hydraulic system, and it offers both rear and mid PTO options. With a notable ground clearance of 9.4 inches, the eMax 22L showcases an operating weight of 1638 lbs and dimensions of 100.5 inches in length, 45.8 inches in width, and 91.3 inches in height when equipped with ROPS.

Key Specifications

Power Output: 22

Transmission: Hydrostatic and Gear (dual options)

Drive Type: 4WD assumed based on standard configurations for similar models and horsepower

Operating Weight: 1638

Fuel Type: Diesel

Image Gallery

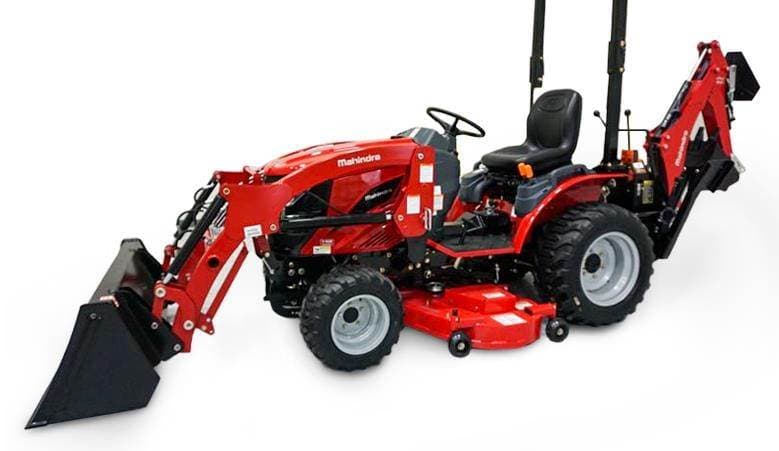

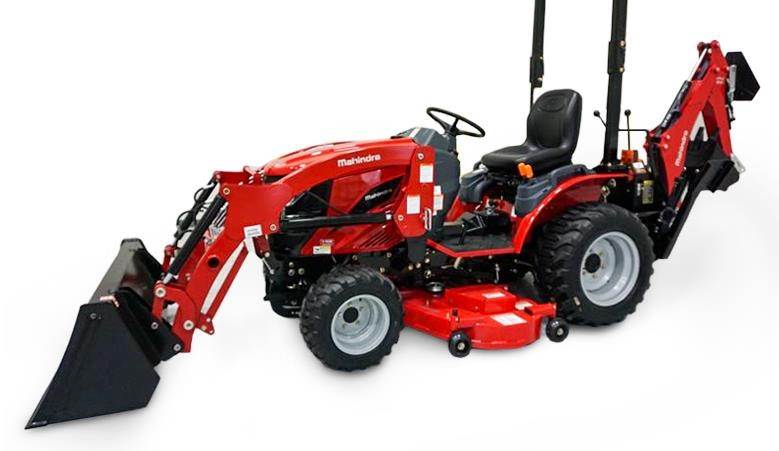

Mahindra eMax 22L Tractor

Technical Specifications

Engine

Manufacturer: Kukje
Model: A1100N3
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Indirect Injection
Cylinders: 3
Displacement (ci): 71.7
Bore (in): 3.07
Stroke (in): 3.23
Rated RPM: 2600
Power Output (hp): 22

Transmission

Type: Hydrostatic and Gear (dual options)
Forward Gears: 6
Reverse Gears: 2
Total Gears: Unknown (as both hydrostatic and gear options are listed)

Dimensions

Length (in): 100.5
Width (in): 45.8
Height (in): 91.3 (with ROPS)
Operating Weight (lb): 1638

Power Take-Off (PTO)

PTO Type: Rear: 540 (1.375), Mid: 2000 (1.0)
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4WD assumed based on standard configurations for similar models and horsepower
Steering Type: Power assumed due to steering pressure specification
Coolant Capacity (qts): 3.7
Front Tire Diameter (in): Unknown (standard ag tire size not indicated, only widths provided)
Front Tire Width (in): Unknown (types indicated but not widths)
Rear Tire Diameter (in): Unknown (standard ag tire size not indicated, only widths provided)
Rear Tire Width (in): Unknown (types indicated but not widths)
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/turf, Industrial (all types listed)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: Unknown (category not explicitly listed, conventional assumption based on tractor size)
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS (Roll-Over Protection System) assumed based on height listed
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
