Mahindra eMax 22

Last Updated: June 2024

Overview

The Mahindra eMax 22 is a 4WD sub-compact utility tractor from the eMax series. This tractor was manufactured by Mahindra from 2014 to 2016. It features a Daedong 3C100 three-cylinder diesel engine with a liquid-cooling system, a compression ratio of 22:1, and produces a power output of 22 hp at 3000 RPM. The eMax 22 is offered with two transmission options: a gear type with a dry disc clutch providing six forward and two reverse gears and a hydrostatic transmission with infinitely variable forward and reverse speeds. It comes with a standard category I hitch capable of lifting 1319 pounds. The tractor has power steering, wet disc brakes, a two-post foldable ROPS for operator safety, and a fuel tank capacity of 23.1 liters. Its operating weight is 1540 pounds, making it suitable for a variety of tasks in a sub-compact tractor size.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 22

Transmission: Gear or Hydrostatic

Drive Type: 4WD

Operating Weight: 1540

Fuel Type: Diesel

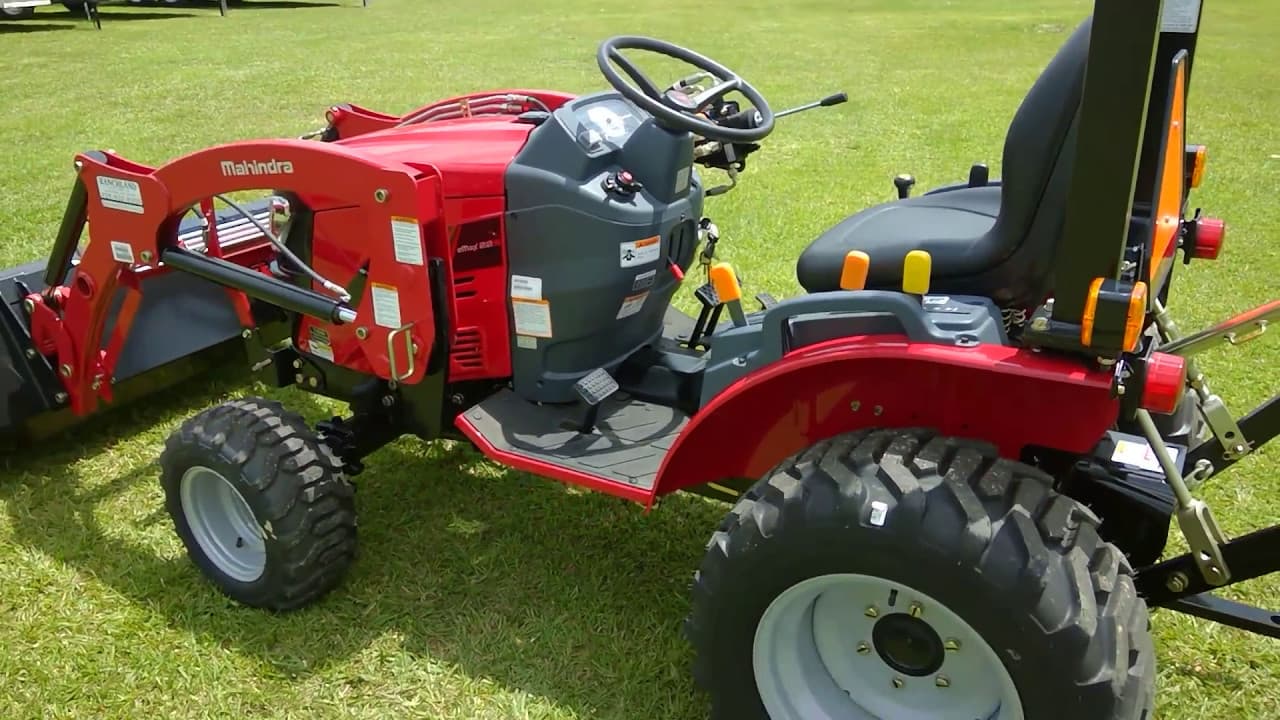

Image Gallery

Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor Mahindra eMax 22 Tractor

Mahindra eMax 22 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Hitch Capacity
Below Average
Greater than 24% of similar tractors.
Operating Weight
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
3C100
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
3
Displacement (ci)
61.5
Bore (in)
2.95
Stroke (in)
2.99
Rated RPM
3000
Power Output (hp)
22

Transmission

Type
Gear or Hydrostatic
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
102.4
Width (in)
46.9
Height (in)
-
Operating Weight (lb)
1540

Power Take-Off (PTO)

PTO Type
Independent (HST) or live (Gear)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
2000 (Mid)

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
2016
Hitch Type
Cat. I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
1319
Operator Station Type
Two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
