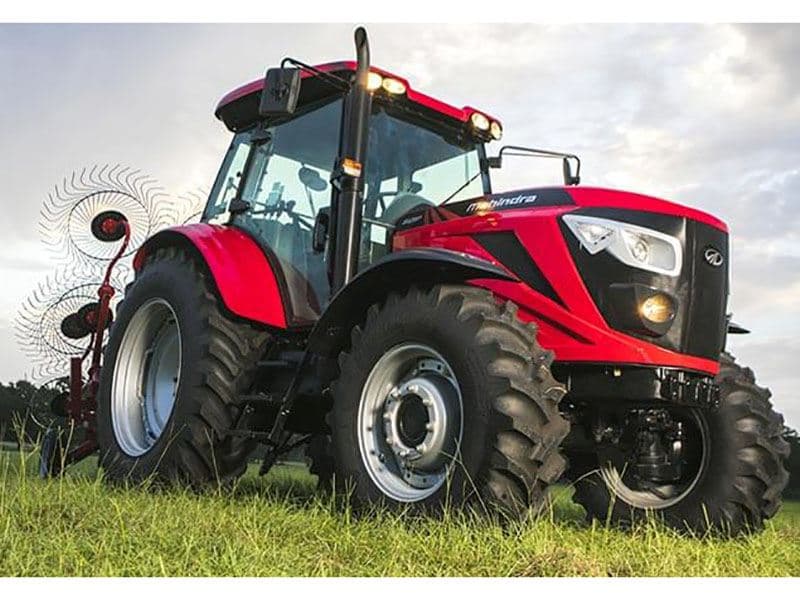

Mahindra 9125

Last Updated: June 2024

Overview

The Mahindra 9125 tractor is a robust and versatile machine designed to tackle a variety of agricultural tasks. It features a 125 horsepower, 4-cylinder turbocharged diesel engine with a liquid-cooling system to manage the high demands placed upon it, complying with Tier IV emissions standards. The power is transmitted through a power shuttle with an optional sync shuttle transmission, offering 32 gears in both forward and reverse. This tractor comes with an open center hydraulic system, providing a steady steering flow, and accommodates various attachments with a rear hitch type II. With an electric starter, it ensures easy and reliable starting of the engine. The Mahindra 9125 measures 169.3 inches in length, 90.9 inches in width, and has a cab height of 107 inches, with an operating weight of 9385 lbs. The tractor's operator station type is assumed to be a cab, considering the height specification provided, which implies that it’s equipped to offer comfort and protection in various weather conditions. PTO options include speeds at 540, 750, and 1000 rpm, allowing for the operation of a wide range of implements.
Show more...

Key Specifications

Power Output: 125

Transmission: Power shuttle with sync shuttle option

Operating Weight: 9385

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Mahindra
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged (assumed based on "Tier IV Emissions")
Cylinders
4
Displacement (ci)
215.6
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
125

Transmission

Type
Power shuttle with sync shuttle option
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
169.3
Width (in)
90.9
Height (in)
107
Operating Weight (lb)
9385

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
750
PTO Speed 3 (rpm)
1000

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Open Center
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assumed based on "Height (cab)")
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
