Mahindra 7520

Last Updated: June 2024

Overview

The Mahindra 7520 is a utility tractor, well suited for a variety of tasks in farming and land maintenance. With a 75 horsepower Mahindra NE475TC diesel engine, it has enough power to handle substantial equipment and heavy loads. It utilizes a 4x2 two-wheel-drive chassis and comes equipped with hydrostatic power steering for ease of maneuverability. The tractor features a 12-speed synch shuttle transmission, offering the versatility needed for different fieldwork operations. It also incorporates an open center hydraulic system, capable of delivering 5.2 gallons per minute, an operating weight between 7100 to 7350 pounds depending upon the drivetrain configurations, and standard agricultural tires. It has a length of 157.5 inches and a width of 76.5 inches, designed to work efficiently in a variety of settings.

Key Specifications

Category: Utility

Power Output: 75

Transmission: Synch shuttle

Drive Type: 2WD

Operating Weight: 7100 (2WD)

Fuel Type: Diesel

Image Gallery

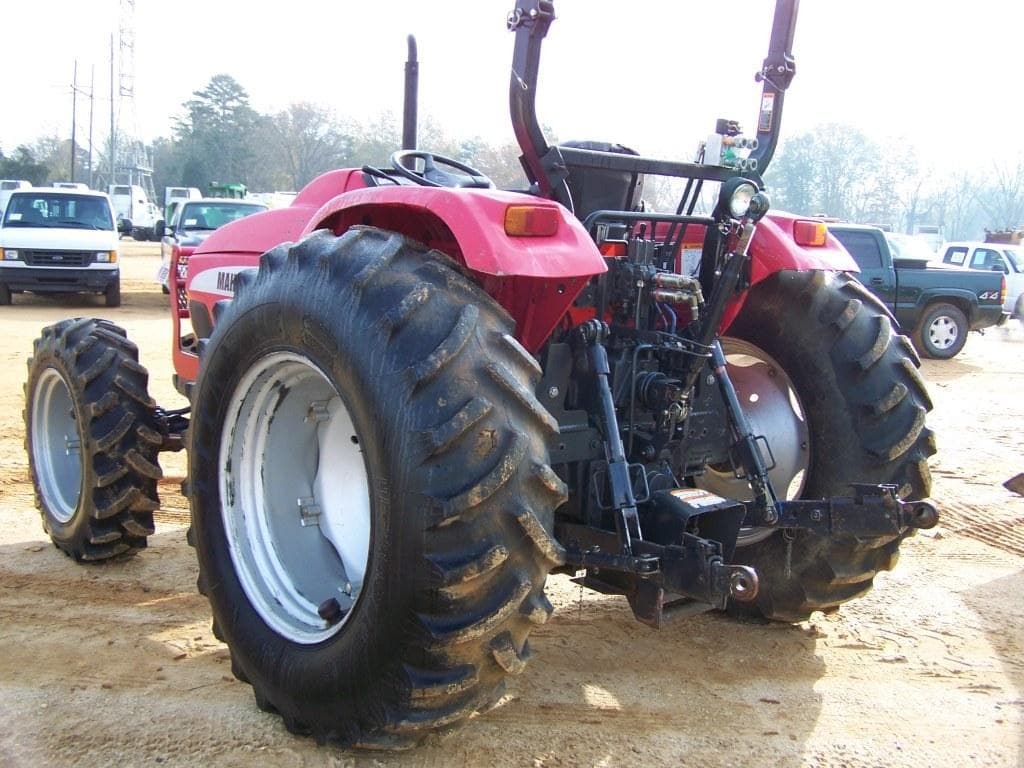

Mahindra 7520 Tractor

Mahindra 7520 vs. Similar Tractors

Power Output

Average

Greater than 68% of similar tractors.

Operating Weight

Above Average

Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mahindra
Model: NE475TC
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Indirect injection
Cylinders: 4
Displacement (ci): 194.7
Bore (in): -
Stroke (in): -
Rated RPM: 2300
Power Output (hp): 75

Transmission

Type: Synch shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 157.5
Width (in): 76.5
Height (in): -
Operating Weight (lb): 7100 (2WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag): Front: 11Lx15, Rear: 16.9x30 (2WD)
Manufacture - End Year: -
Hitch Type: Rear Type II
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volts
Brake Type: -
Hydraulic System Type: Open center
