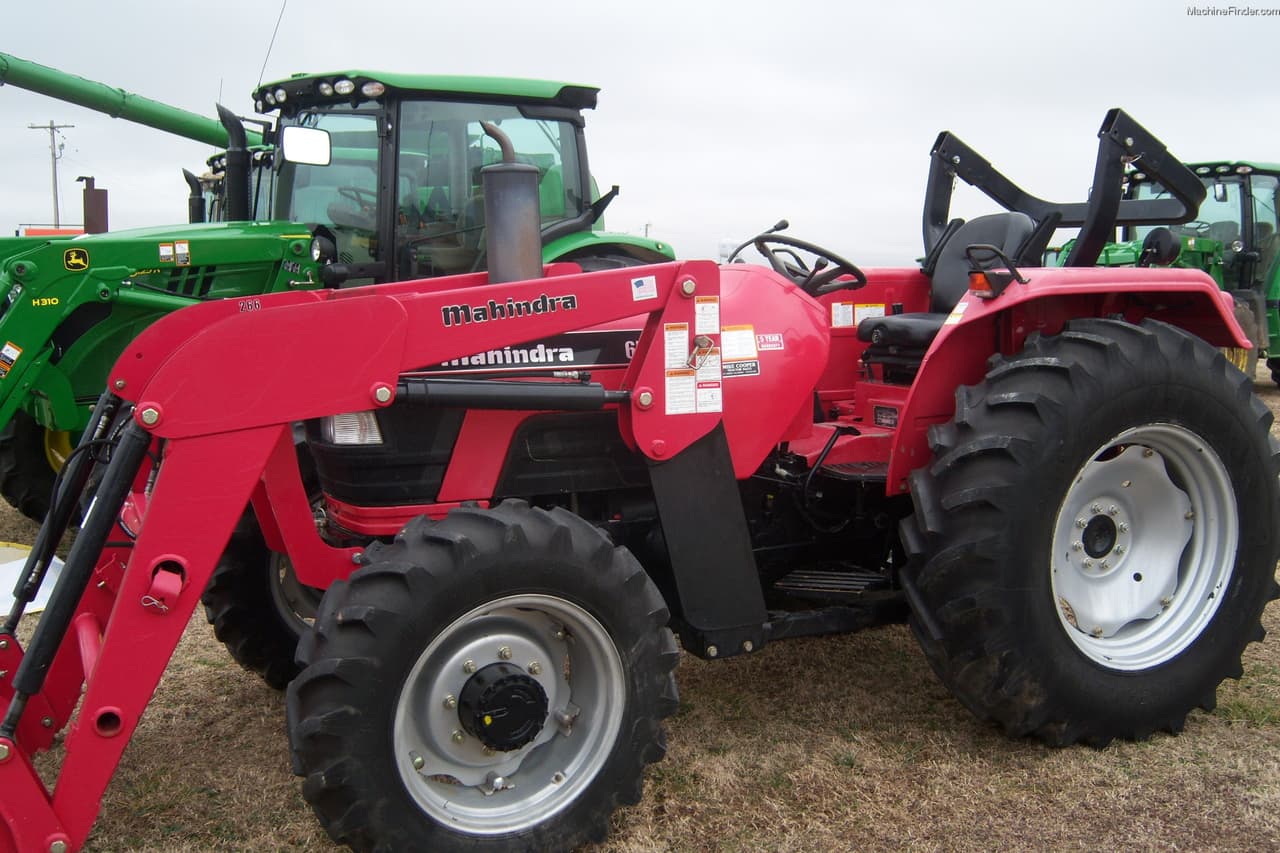

Mahindra 6530

Last Updated: June 2024

Overview

The Mahindra 6530 is a versatile utility tractor that caters to a range of agricultural tasks. Available in both 2WD and 4WD configurations, the 6530 provides flexibility for different terrain and working conditions. It is powered by Mahindra's three-cylinder, 152.4 cubic-inch diesel engine, offering 65 horsepower and a rated RPM of 2200. The tractor features a synchronized shuttle transmission with eight forward and eight reverse gears, providing adequate maneuverability for various farm applications. The hydraulic power steering and wet disc brakes enhance control and safety, while the open center hydraulic system and rear PTO extend its utility for implements. Capable of handling a rear hitch lift capacity of up to 3967 pounds, the 6530 can perform demanding tasks with ease. It operated with a two-post foldable ROPS, ensuring operator safety. Mahindra's dedication to durability and functionality is evident in the 6530's design, making it suitable for a wide range of agricultural requirements.
Show more...

Key Specifications

Category: Utility

Power Output: 65

Transmission: Synchronized shuttle

Drive Type: 2WD / 4WD

Operating Weight: 5556 (2WD) / 6302 (4WD)

Fuel Type: Diesel

Mahindra 6530 vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Hitch Capacity
Average
Greater than 69% of similar tractors.
Operating Weight
Excellent
Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mahindra
Model
Mahindra
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
152.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
65

Transmission

Type
Synchronized shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
137.8 (2WD) / 145.0 (4WD)
Width (in)
77.2 (2WD) / 81.0 (4WD)
Height (in)
-
Operating Weight (lb)
5556 (2WD) / 6302 (4WD)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD
Drive Type
2WD / 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
28 (2WD) / 30 (4WD)
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2018
Hitch Type
Category II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
3967 lbs
Operator Station Type
Two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
