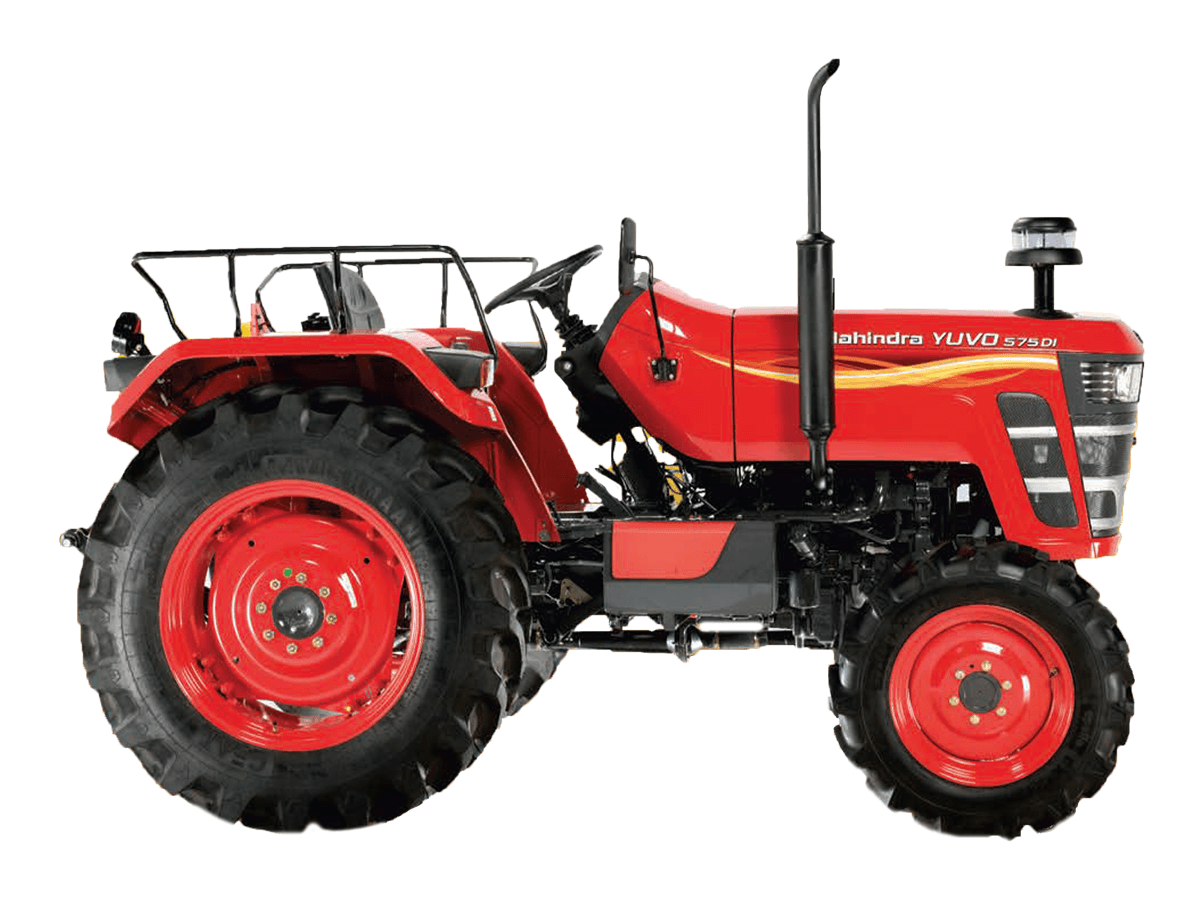

Mahindra 575

Last Updated: June 2024

Overview

The Mahindra 575 is categorized as a utility tractor, suitable for a variety of tasks in the field. It is built with a simple yet functional 4x2 2WD chassis which, coupled with hydrostatic power steering, provides a convenient handling experience for the operator. This tractor uses a gear-driven transmission, offering 8 forward and 2 reverse speeds which can handle many different types of work with ease. The heartbeat of this tractor is the Mahindra MDI 2500 engine, a 4-cylinder liquid-cooled diesel unit with a displacement of 154 ci. Engine power output is rated at 45 hp, with an operational rated RPM of 2300. Weighing 4136 pounds and with a generous wheelbase of 76.4 inches, the Mahindra 575 offers good stability in various conditions. The tractor's ground clearance of 10 inches and an adjustable front tread of 51 to 67 inches and rear tread of 52 to 72 inches permit work in diverse environments. Traction is provided by agricultural tires, with 6.50x20 in the front and 16.9x28 in the rear. A dry disc clutch transfers power from the engine transmission reliably. The Mahindra 575 is engineered with usability in mind, making it a reliable workhorse for a host of farming requirements.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4136

Fuel Type: Diesel

Mahindra 575 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mahindra
Model
MDI 2500
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
154
Bore (in)
3.5
Stroke (in)
4
Rated RPM
2300
Power Output (hp)
45

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
128
Width (in)
78
Height (in)
72 (steering wheel height)
Operating Weight (lb)
4136

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
11.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
