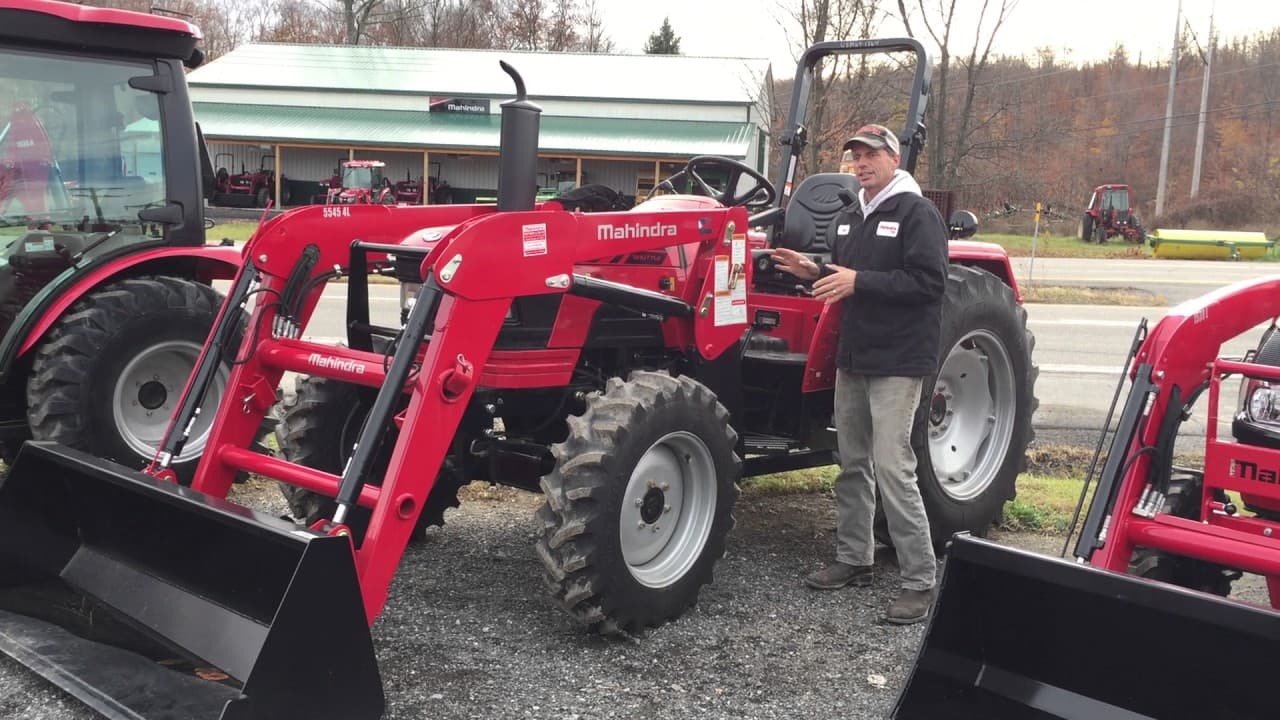

Mahindra 5545

Last Updated: June 2024

Overview

The Mahindra 5545 is a utility tractor that is designed for a variety of tasks around the farm or work site. With a four-wheel drive configuration (4x4 MFWD 4WD), it is equipped to handle rough terrain. The power steering aids in maneuverability, particularly when the tractor is under load or in tight spaces. At the heart of the 5545 is a Mahindra diesel engine with a displacement of 161.7 cubic inches, producing 43 horsepower. This liquid-cooled, three-cylinder engine is designed with direct injection fuel system and is Tier IV emissions certified. A notable feature is the sync shuttle transmission, which boasts 8 gears in both forward and reverse directions, supported by a cerametallic dry disc clutch. The tractor stands tall at 93.3 inches in height with ROPS and has an operating weight of 5567 pounds. It comes with two tire options, indicating versatility—agricultural tires with a front/rear configuration of 9.5x20 and 13.6x28 inches, respectively, and industrial tires sized 10.5/80x18 at the front and 16.9x24 at the rear. The hydraulic system is of the open center type, with a flow of 5 gpm (18.9 lpm), indicating decent capacity for handling various hydraulic tools and attachments. The tractor is designed for efficiency and durability, boasting a simple yet robust design that can tackle multiple tasks in various agricultural settings.
Show more...

Key Specifications

Category: Utility

Power Output: 43

Transmission: Sync shuttle

Drive Type: 4WD

Operating Weight: 5567

Fuel Type: Diesel

Mahindra 5545 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mahindra
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
3
Displacement (ci)
161.7
Bore (in)
3.78
Stroke (in)
4.8
Rated RPM
2300
Power Output (hp)
43

Transmission

Type
Sync shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
16

Dimensions

Length (in)
134
Width (in)
72.5
Height (in)
93.3
Operating Weight (lb)
5567

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 9.5x20. Rear: 13.6x28, Industrial: Front: 10.5/80x18. Rear: 16.9x24 (two sets provided, agricultural and industrial)
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
