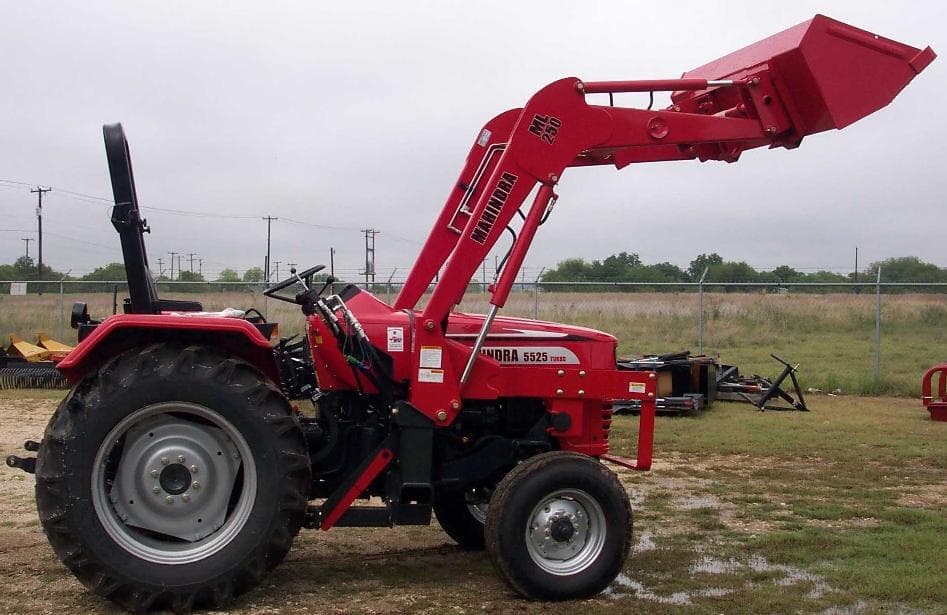

Mahindra 5525

Last Updated: June 2024

Overview

The Mahindra 5525 is a utility tractor that comes with a solid build suitable for a variety of agricultural needs. It features a Mahindra-built diesel engine with a displacement of 186.2 cubic inches, offering a power output of 54 horsepower at a rated RPM of 2100. The engine operates with direct injection and a compression ratio indicative of a high-efficiency diesel engine. This model is equipped with an 8-speed transmission, offering 8 forward and 2 reverse gears. With hydrostatic power steering and a chassis configuration of 4x2 2WD, the 5525 provides ease of operation and maneuverability for its class. The tractor's operational weight stands at 4836 pounds, making it a relatively heavyweight option in the utility sector. The front and rear AG tires measure 7.5x16 inches and 13.6x28 inches, respectively, contributing to the tractor's stability and traction. While comprehensive information regarding the tractor's other systems and features is not provided, it is equipped with an open center hydraulic system and uses a Category 3 hitch.
Show more...

Key Specifications

Category: Utility

Power Output: 54

Drive Type: 2WD

Operating Weight: 4836

Fuel Type: Diesel

Mahindra 5525 vs. Similar Tractors

Power Output
Average
Greater than 51% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mahindra
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
-
Displacement (ci)
186.2
Bore (in)
3.701
Stroke (in)
4.331
Rated RPM
2100
Power Output (hp)
54

Transmission

Type
-
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
119
Width (in)
78
Height (in)
-
Operating Weight (lb)
4836

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
