Mahindra 5500

Last Updated: June 2024

Overview

The Mahindra 5500 is a utility tractor that comes with a 54 hp Mahindra NE452 diesel engine, offering solid performance with 4 cylinders and a displacement of 186 cubic inches. The tractor performs at a rated RPM of 2100 and is equipped with direct-injection technology. Transmission options include a synchromesh shuttle and constant mesh, providing 8 forward and 2 reverse gears. It has features like an open center hydraulic system and an electric starter. The versatility of this tractor is shown by its various tire options for ag, lawn/turf, and industrial uses in both 2WD and 4WD configurations. The exact dimensions are tractor-specific, with the 2WD version having a length of 137 inches and the 4WD being slightly longer at 150 inches. Both have a width of 77.4 inches. The operating weight ranges from 4966 lbs for the 2WD model to 6230 lbs for the 4WD model.

Key Specifications

Category: Utility

Power Output: 54

Transmission: Synchromesh shuttle with constant mesh

Operating Weight: 4966 (2WD), 6230 (4WD)

Fuel Type: Diesel

Image Gallery

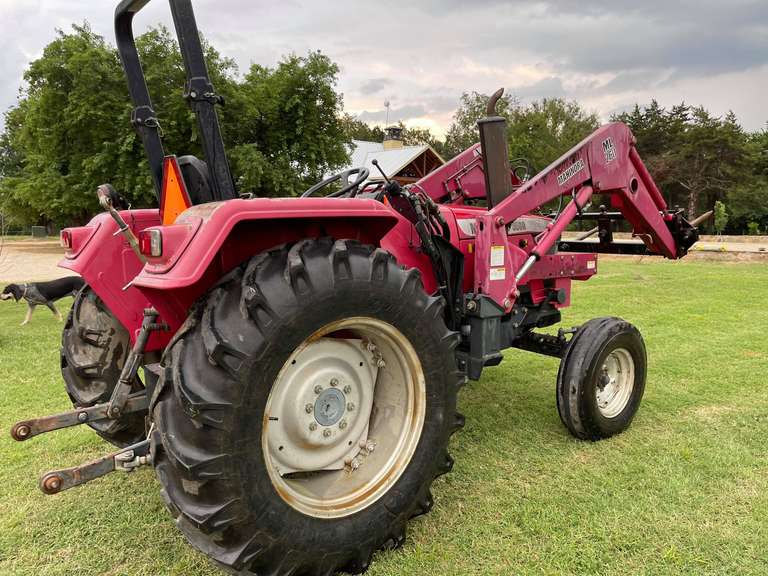

Mahindra 5500 Tractor

Mahindra 5500 vs. Similar Tractors

Power Output

Average

Greater than 51% of similar tractors.

Operating Weight

Above Average

Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mahindra
Model: NE452
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 4
Displacement (ci): 186
Bore (in): 3.7
Stroke (in): 4.33
Rated RPM: 2100
Power Output (hp): 54

Transmission

Type: Synchromesh shuttle with constant mesh
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 137 (2WD), 150 (4WD)
Width (in): 77.4
Height (in): -
Operating Weight (lb): 4966 (2WD), 6230 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 16 (2WD), 24 (4WD), 15 (2WD Lawn/turf), 521 (4WD Lawn/turf), 15 (2WD Industrial), 18 (4WD Industrial)
Front Tire Width (in): 7.5 (2WD), 9.5 (4WD), 12LL (2WD Lawn/turf), 305 (4WD Lawn/turf), 11L (2WD Industrial), 12.5/80 (4WD Industrial)
Rear Tire Diameter (in): 28 (ag), 648 (Lawn/turf), 24 (2WD Industrial), 24 (4WD Industrial)
Rear Tire Width (in): 14.9 (ag), 570 (Lawn/turf), 19.5 (2WD Industrial), 16.9 (4WD Industrial)
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/turf, Industrial
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
