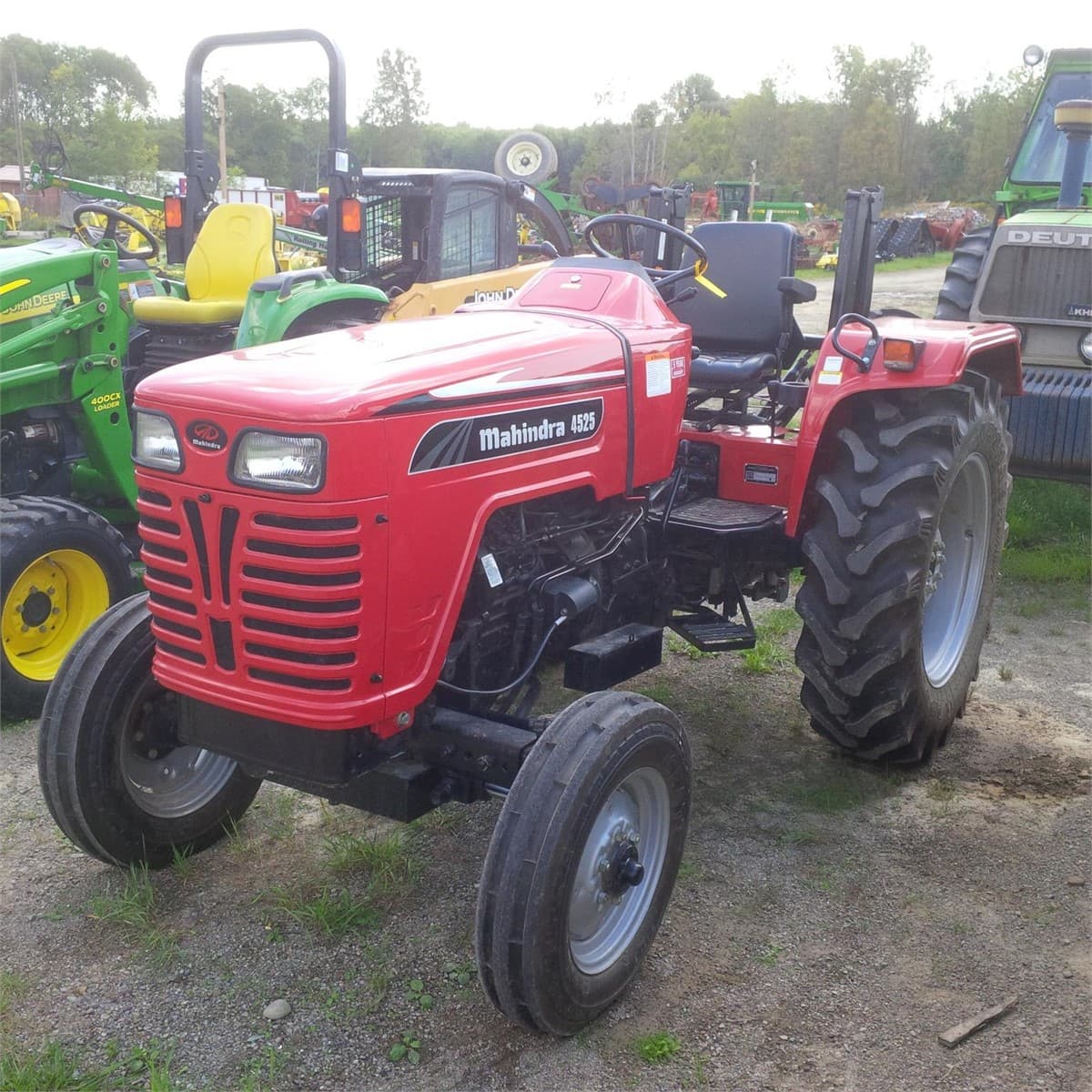

Mahindra 4525

Last Updated: June 2024

Overview

The Mahindra 4525 is a compact utility tractor that is designed to perform various tasks around the farm with efficiency and reliability. Fitted with a 4x2 2WD chassis and hydrostatic power steering, the tractor provides ease of maneuverability in different working conditions. Under the hood, it is powered by a 46 horsepower, 4-cylinder, liquid-cooled Mahindra MDI 2700R1 diesel engine with direct injection, coupled to a sliding mesh transmission featuring 8 forward and 2 reverse gears. The engine's compression ratio is 19.5:1, and it operates at a rated RPM of 2300. The tractor stands on agricultural tires, with front tire size 6x16 and rear tire size 13.6x28. While the tractor's full dimensions include a length of 116.3 inches and a width of 70 inches, its height remains unspecified. Its operation weight is stated at 4,246 pounds. The Mahindra 4525 also features a Category 3 rear hitch with unknown lift capacity and an open center hydraulic system.
Show more...

Key Specifications

Category: Utility

Power Output: 46

Transmission: Sliding mesh

Drive Type: 2WD

Operating Weight: 4246

Fuel Type: Diesel

Mahindra 4525 vs. Similar Tractors

Power Output
Average
Greater than 44% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mahindra
Model
MDI 2700R1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
166.7
Bore (in)
3.5
Stroke (in)
4.331
Rated RPM
2300
Power Output (hp)
46

Transmission

Type
Sliding mesh
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
116.3
Width (in)
70
Height (in)
-
Operating Weight (lb)
4246

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (assumed based on "Rear Type: II/I")
Hitch Category
Category 3 (assumed based on "Rear Type: II/I")
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
