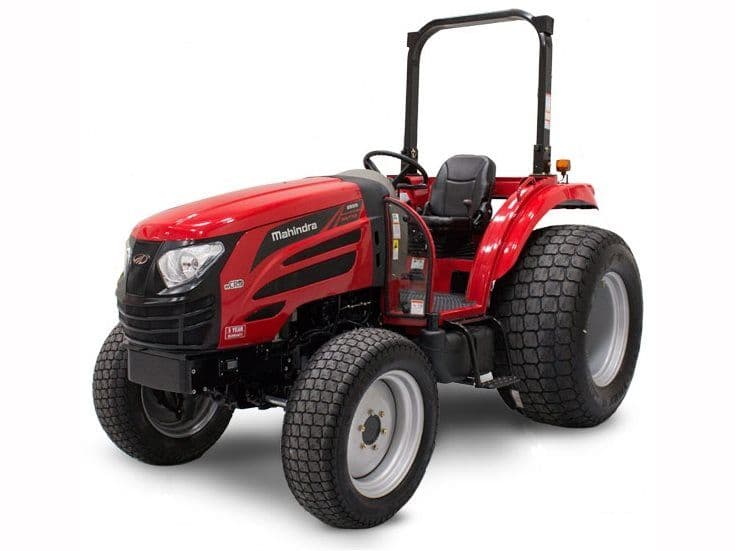

Mahindra 4010

Last Updated: September 2024

Overview

The Mahindra 4010 is a utility tractor built for versatility and performance. It features a 4x4 MFWD chassis with four-wheel drive, making it capable in various terrains. The tractor is powered by a Daedong 3B183LW diesel engine with three cylinders and liquid cooling. This engine produces 38 hp at 2600 rpm, offering average power for its class.

The 4010 model comes with a constant mesh transmission, providing 9 forward and 3 reverse gears for flexible operation. It has hydrostatic power steering for easy maneuvering and an open center hydraulic system. The tractor is equipped with a Category I three-point hitch at the rear, suitable for attaching various implements. With dimensions of 119.3 inches in length and 59.8 inches in width, and an operating weight of 3065 lb, this Mahindra tractor is compact yet sturdy. It rides on 8x16 front tires and 12.4x24 rear tires, both agricultural type, ensuring good traction in farm conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 38 hp (28.3 kW)

Transmission: Constant mesh

Drive Type: 4WD

Operating Weight: 3065 lb (1390 kg)

Fuel Type: Diesel

Mahindra 4010 vs. Similar Tractors

Power Output

The Power Output for the Mahindra 4010 is Average. It is greater than 35% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Mahindra 4010 is Below Average. It is greater than 27% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Mahindra 4010 is Below Average. It is greater than 30% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Mahindra 4010 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Daedong
Model
3B183LW
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement
111 ci (1.8 L)
Bore
3.43 in (87.1 mm)
Stroke
4.03 in (102.4 mm)
Rated RPM
2600
Power Output
38 hp (28.3 kW)

Transmission

Type
Constant mesh
Forward Gears
9
Reverse Gears
3

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
