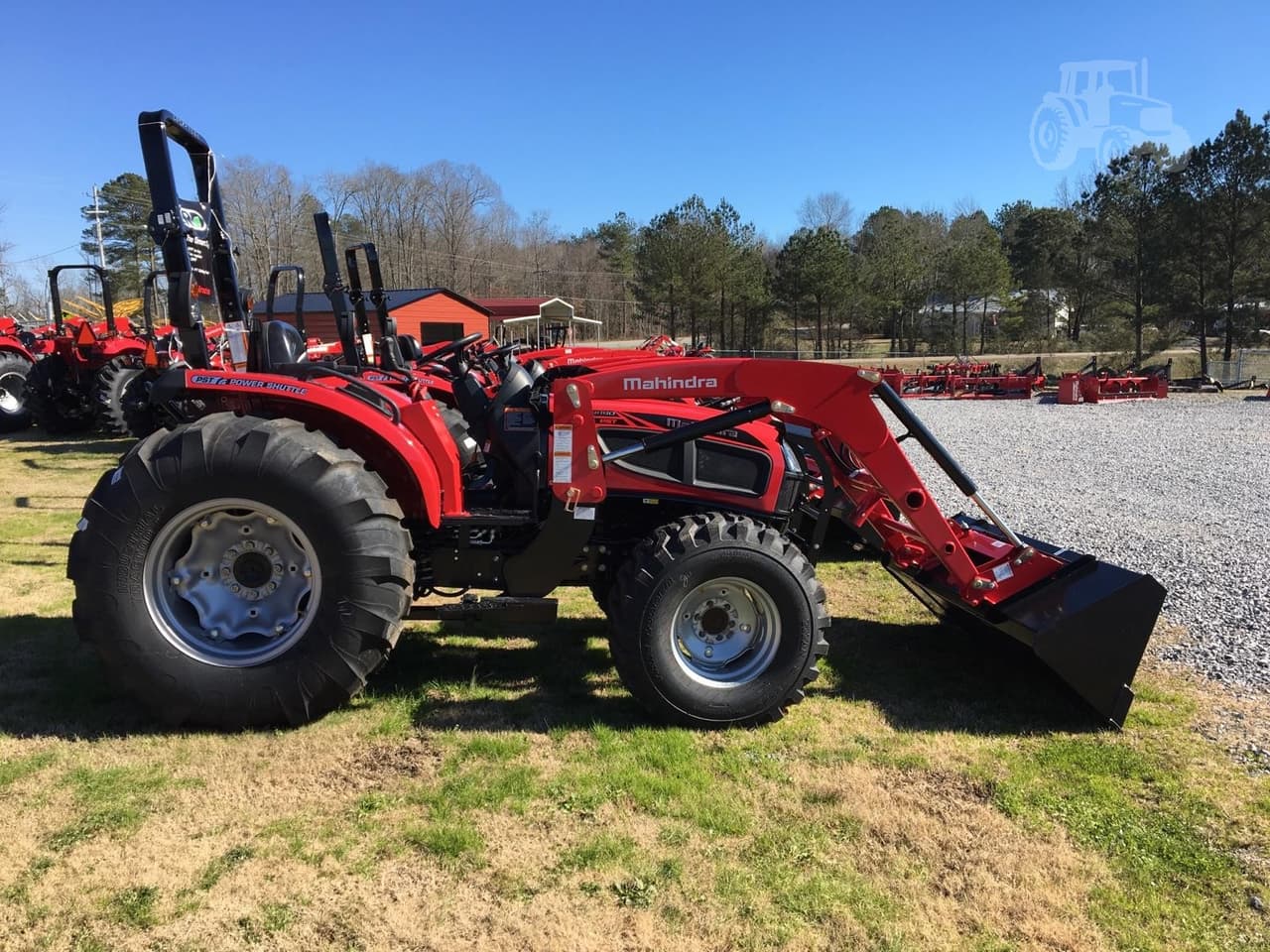

Mahindra 3640

Last Updated: June 2024

Overview

The Mahindra 3640 is a tractor designed with versatility and power in mind, reflected by a 40 horsepower engine that makes it suitable for a variety of tasks. The powertrain comes with two transmission options: a power shuttle transmission with 12 forward and reverse gears or a hydrostatic transmission with infinite forward and reverse gears available in three ranges, offering the operator the flexibility to choose the right speed for the job at hand. The engine is a 4-cylinder diesel with liquid cooling and direct injection, offering reliability and efficiency at a rated RPM of 2800. The tractor's utility is enhanced by its three-point hitch (Rear Type II/I) and an open center hydraulic system, supporting a variety of attachments. The tractor comes with two height options, 98.7 inches with a Roll-Over Protection Structure (ROPS) and 100 inches with a cab, providing safety and comfort for the operator. Despite its capabilities, the length of the tractor remains compact at 129 inches, and it boasts a ground clearance of 13.6 inches, making it suitable for diverse ground conditions.
Show more...

Key Specifications

Power Output: 40

Transmission: Power Shuttle / Hydrostatic

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Mahindra
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
166.7
Bore (in)
3.5
Stroke (in)
4.33
Rated RPM
2800
Power Output (hp)
40

Transmission

Type
Power Shuttle / Hydrostatic
Forward Gears
12 / Infinite (3-range)
Reverse Gears
12 / Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
129
Width (in)
-
Height (in)
98.7 (ROPS) / 100 (cab)
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
