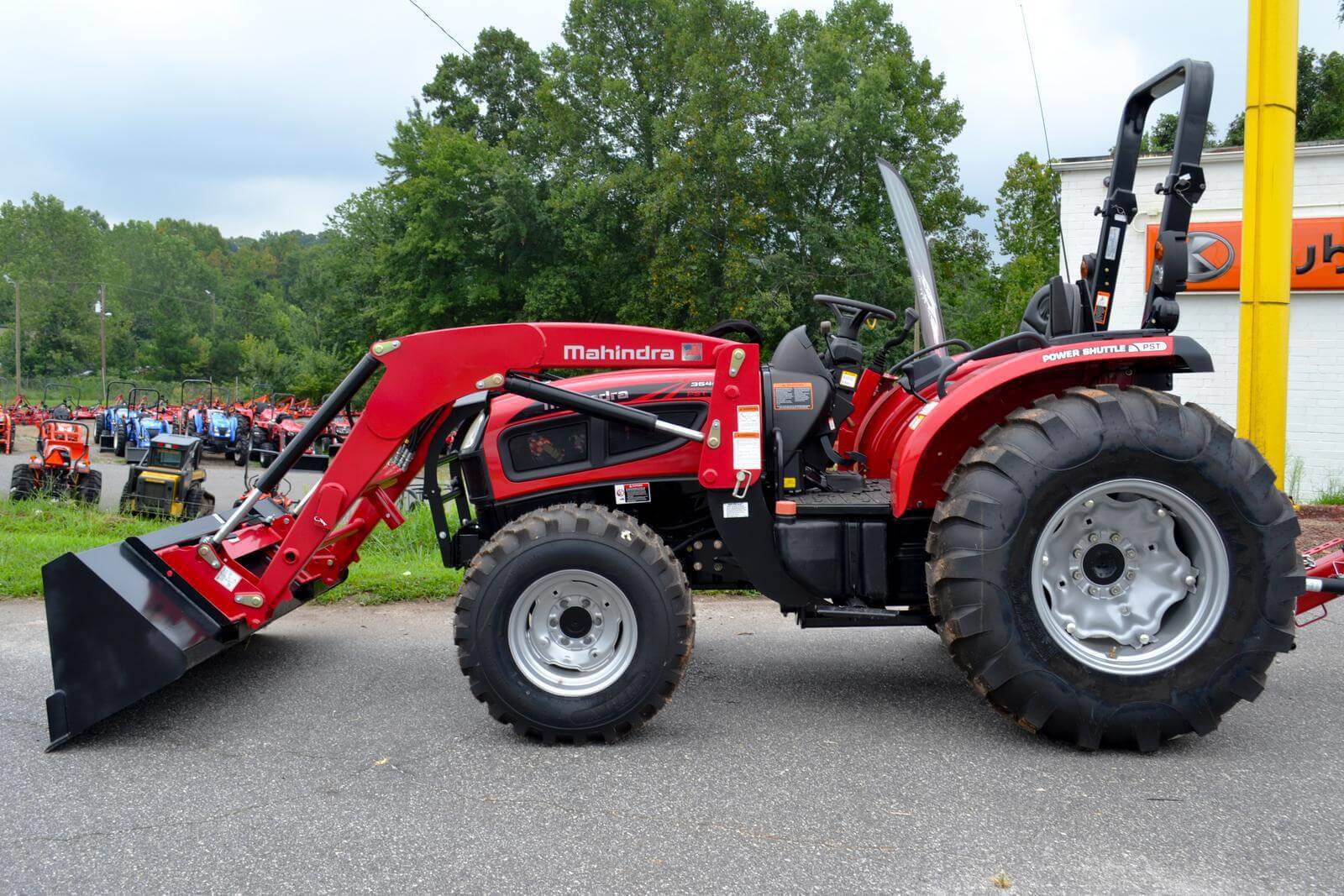

Mahindra 3540

Last Updated: June 2024

Overview

The Mahindra 3540 is a versatile and powerful compact utility tractor, suitable for a variety of tasks in both agricultural and non-agricultural settings. With a strong four-cylinder diesel engine that delivers 40 horsepower and up to 90.7 ft-lb of torque, this tractor is well-equipped to handle demanding jobs. The two transmission options include a power shuttle with 12 forward and reverse gears for users who prefer a traditional gear-driven approach, and a hydrostatic transmission for those who require infinite speed selection within three ranges. The tractor's hydrostatic power steering and wet disc brakes ensure easy and safe handling. Weighing between 4367 and 5617 pounds depending on the variant, this tractor can be fitted with different tire options suitable for agricultural fields, lawn and turf, or industrial applications. The Mahindra 3540 is equipped with a Category I three-point hitch and a 540 rpm PTO, which, along with its high lift capacity, make it capable of operating a variety of implements.
Show more...

Key Specifications

Power Output: 40

Transmission: Power shuttle with wet disc clutch / Hydrostatic

Drive Type: 4WD

Operating Weight: 4367 to 5617

Fuel Type: Diesel

Lift Capacity: 3090 lbs

Technical Specifications

Engine

Manufacturer
Mahindra
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
166.6
Bore (in)
3.5
Stroke (in)
4.33
Rated RPM
2800
Power Output (hp)
40

Transmission

Type
Power shuttle with wet disc clutch / Hydrostatic
Forward Gears
12 (shuttle) / Infinite (3-range) (HST)
Reverse Gears
12 (shuttle) / Infinite (3-range) (HST)
Total Gears
-

Dimensions

Length (in)
128.7
Width (in)
73.6
Height (in)
98
Operating Weight (lb)
4367 to 5617

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag / Lawn/Turf / Industrial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
3090 lbs
Operator Station Type
Two-post foldable ROPS / Cab (optional A/C)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
