Mahindra 3015

Last Updated: June 2024

Overview

The Mahindra 3015 is a compact utility tractor, designed for a variety of tasks. Powered by a 30 hp Mitsubishi K3M-D diesel engine, it is well-suited for small farming operations and land maintenance work. The tractor features a liquid-cooled, naturally-aspirated 3-cylinder engine with a displacement of 91.3 cubic inches and operates at a rated 2750 RPM. With a 4-wheel drive (4WD) chassis and hydrostatic power steering, it provides ease of handling and maneuverability. The transmission offers infinite (3-range) forward and reverse gears, facilitating a variety of speeds for different tasks. Sitting on a 115-inch-long frame and weighing 2601 lbs, the Mahindra 3015 offers various tire options for different applications, including agricultural, lawn/turf, and industrial use. The adoption of an open center hydraulic system reflects its functional design built for utility and efficiency.

Key Specifications

Category: Utility

Power Output: 30

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2601

Fuel Type: Diesel

Image Gallery

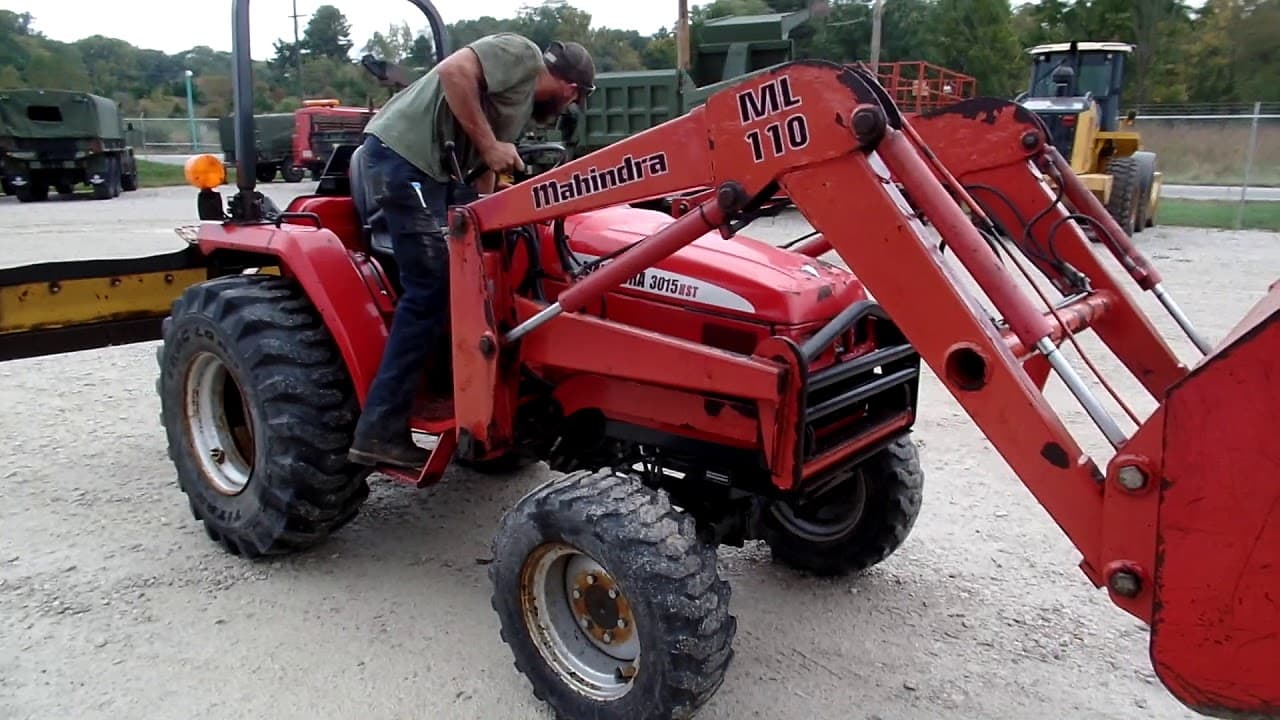

Mahindra 3015 Tractor

Mahindra 3015 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Below Average

Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3M-D
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally-aspirated
Cylinders: 3
Displacement (ci): 91.3
Bore (in): 3.307
Stroke (in): 3.543
Rated RPM: 2750
Power Output (hp): 30

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 115
Width (in): 53.7
Height (in): -
Operating Weight (lb): 2601

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 8
Rear Tire Diameter (in): 24
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag Front: 8x16, Ag Rear: 12.4x24, Lawn/Turf Front: 27x10.5-15, Lawn/Turf Rear: 41x14-20, Industrial Front: 27x8.5-15, Industrial Rear: 15x19.5
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter (12 volts)
Brake Type: -
Hydraulic System Type: Open Center
