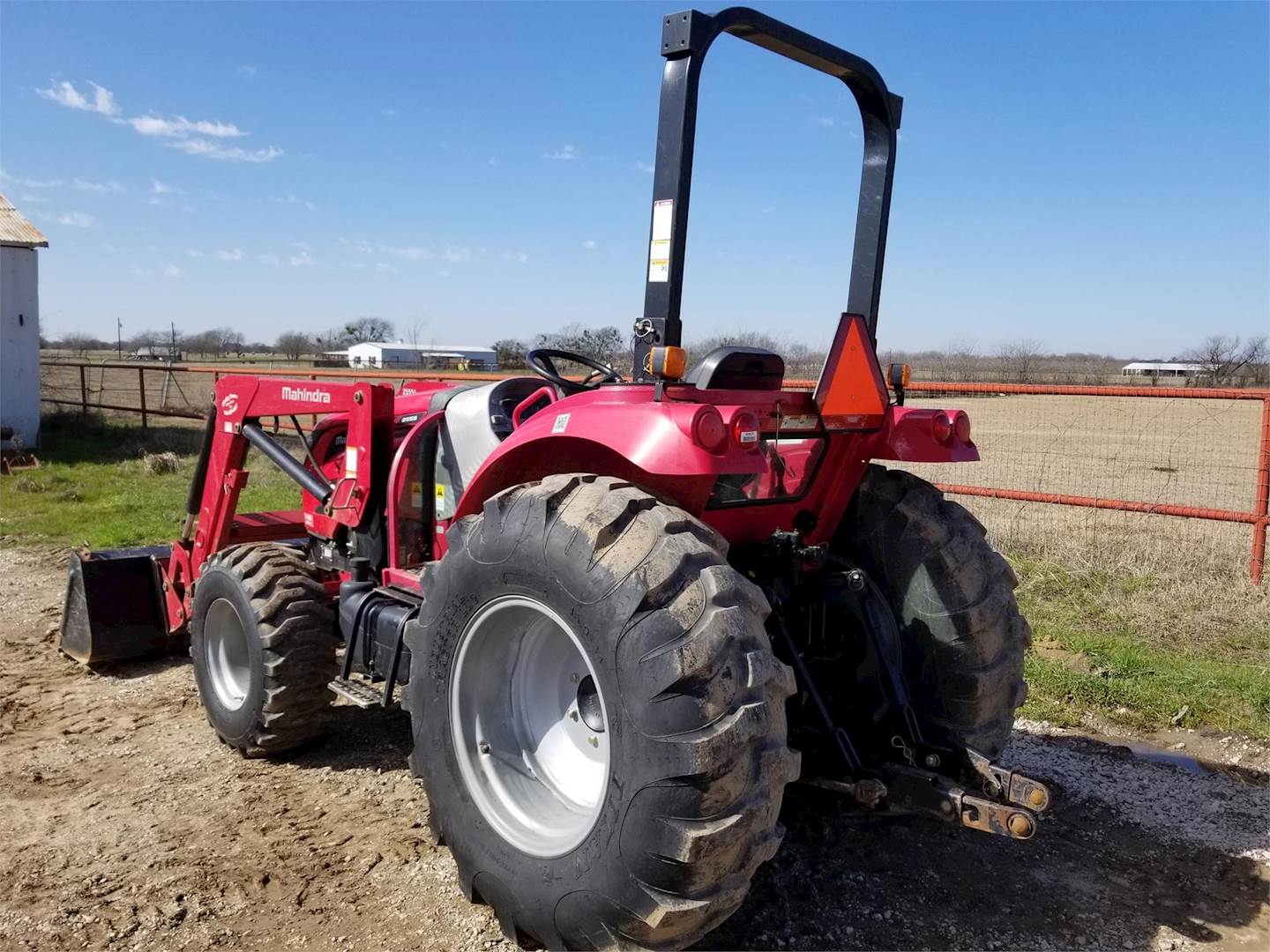

Mahindra 2555

Last Updated: June 2024

Overview

The Mahindra 2555 is a compact utility tractor that has been manufactured by TYM for Mahindra, designed for a variety of tasks in the small farming, estate management, and landscaping industries. It is powered by a Mahindra 2.6 L, four-stroke, turbocharged intercooled diesel engine producing 55 hp and a peak torque output at 2300 RPM. The tractor is equipped with either a 12-speed shuttle transmission or a hydrostatic transmission with infinite (3-range) forward and reverse gears. The hydrostatic model features wet disc clutches, enhancing its durability and reliability. The tractor's functionality is complemented by Category I hitch system and an open center hydraulic system, with a lift capacity of 3308 lbs. Safety and operator convenience are catered to with power steering, wet disc brakes, and an optional two-post foldable ROPS or a cab with air-conditioning. The large capacity fuel tank ensures extended working hours without the need for frequent refueling.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Shuttle, Hydrostatic

Drive Type: 4WD

Operating Weight: 4056 (ROPS), 4299 (Cab)

Fuel Type: Diesel

Mahindra 2555 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Hitch Capacity
Average
Greater than 60% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mahindra
Model
Mahindra
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement (ci)
161.5
Bore (in)
3.78
Stroke (in)
4.8
Rated RPM
2300
Power Output (hp)
55

Transmission

Type
Shuttle, Hydrostatic
Forward Gears
12 (Shuttle)
Reverse Gears
12 (Shuttle)
Total Gears
-

Dimensions

Length (in)
133.9
Width (in)
70.9 (ROPS), 71.3 (Cab)
Height (in)
102
Operating Weight (lb)
4056 (ROPS), 4299 (Cab)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (9.5x16)
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
24 (14.9x24)
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (Ag), Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
3308 lbs
Operator Station Type
Two-post foldable ROPS or Cab (optional air-conditioning)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
