Mahindra 1533

Last Updated: June 2024

Overview

The Mahindra 1533 is a 4WD compact utility tractor from the 1500 series. This model was produced by Mitsubishi for Mahindra and features a robust 35 PS (25.7 kW; 34.5 HP) four-cylinder diesel engine. This tractor could be equipped with either a constant mesh transmission offering 8 forward and reverse gears or a hydrostatic transmission with infinite forward and reverse ranges, catering to a variety of tasks. Its hydraulic power steering and wet disc brakes provide reliable control and operation. The Mahindra 1533 also includes a three-point hitch with a lift capacity of 1,200 kg, making it suited for various implements and tasks on a farm or land. Additional tools could be attached to the PTO, which delivers 540 to 2000 rpm, depending on the transmission type and accessory requirements.

Key Specifications

Category: Utility

Power Output: 34.5

Transmission: Shuttle / Hydrostatic

Drive Type: MFWD (Mechanical Front-Wheel Drive)

Operating Weight: 3175 (Shuttle) / 3164 (Hydrostatic)

Fuel Type: Diesel

Image Gallery

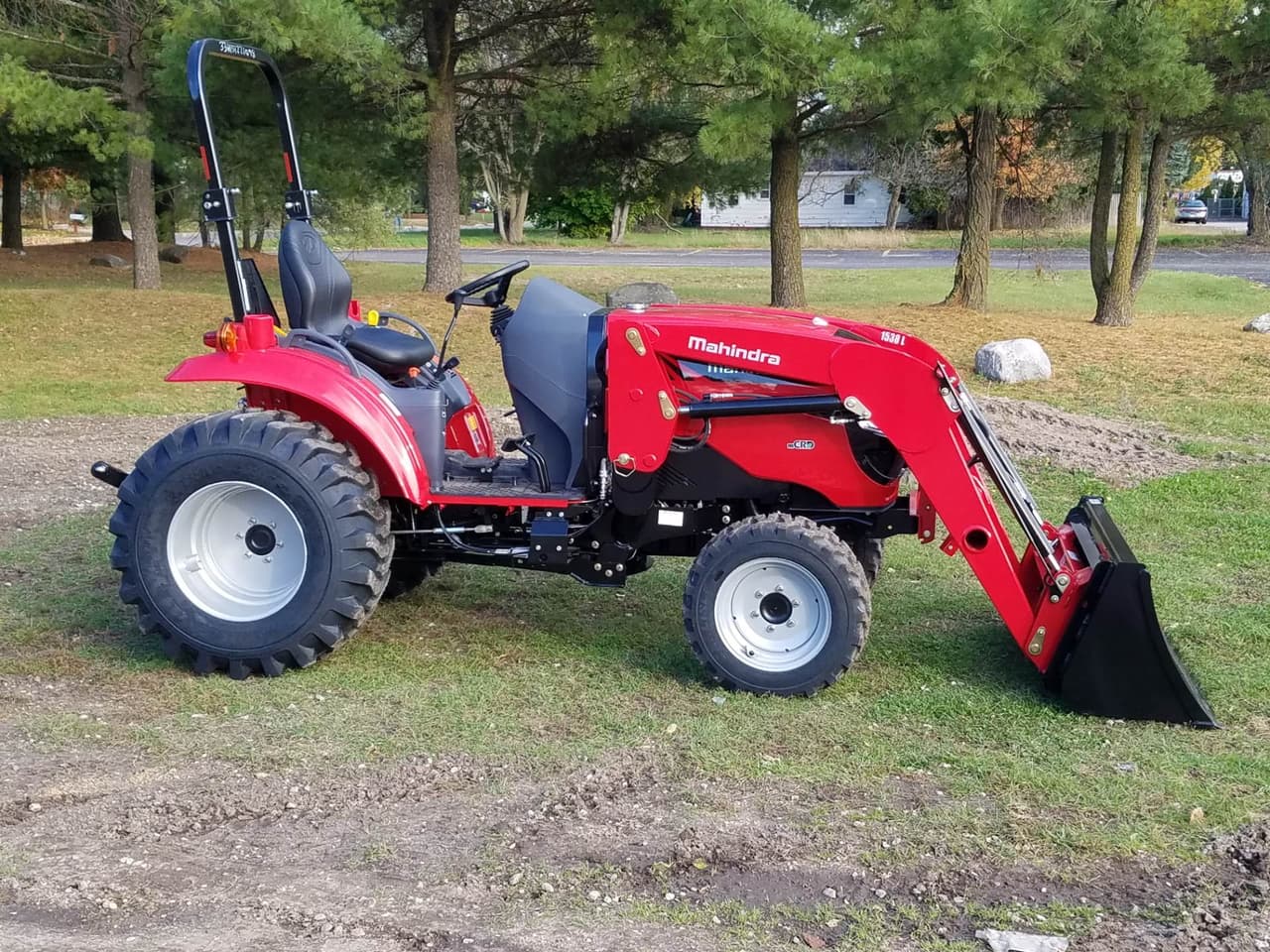

Mahindra 1533 Tractor

Mahindra 1533 vs. Similar Tractors

Power Output

Below Average

Greater than 30% of similar tractors.

Hitch Capacity

Average

Greater than 47% of similar tractors.

Operating Weight

Above Average

Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mahindra
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 166.7
Bore (in): 3.5
Stroke (in): 4.33
Rated RPM: 2400
Power Output (hp): 34.5

Transmission

Type: Shuttle / Hydrostatic
Forward Gears: 8 (Shuttle) / Infinite (3-range) (Hydrostatic)
Reverse Gears: 8 (Shuttle) / Infinite (3-range) (Hydrostatic)
Total Gears: -

Dimensions

Length (in): 127.6
Width (in): 63
Height (in): 90.2
Operating Weight (lb): 3175 (Shuttle) / 3164 (Hydrostatic)

Power Take-Off (PTO)

PTO Type: Independent (shuttle) or live (hydrostatic)
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2000 (Mid PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD (Mechanical Front-Wheel Drive)
Steering Type: Hydraulic power
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown for standard Ag tire (non-specific size given)
Front Tire Width (in): Unknown for standard Ag tire (non-specific size given)
Rear Tire Diameter (in): Unknown for standard Ag tire (non-specific size given)
Rear Tire Width (in): Unknown for standard Ag tire (non-specific size given)
Front/Rear Rim Diameter (in): -
Tire Type: Ag / Lawn/turf / Industrial
Manufacture - End Year: 2018
Hitch Type: Three-Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): 2646 lbs
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
