LS XR3037H

Last Updated: June 2024

Overview

The LS XR3037H is a compact utility tractor that is powered by a Shibaura N843T-F engine. This powerplant is a 91.3 cubic inch, turbocharged diesel, featuring three cylinders and liquid-cooling, with a rated power output of 36.2 horsepower at 2600 RPM. The tractor is geared for versatile operations with an infinite 3-range hydrostatic transmission, enabling smooth transitions for various tasks. It features a four-wheel-drive chassis (4x4 MFWD 4WD) for improved traction and hydrostatic power steering for ease of handling. With a Category I hitch and a range of tire options for agricultural, turf, or industrial applications, it is equipped to handle different land management activities. The XR3037H's frame accommodates optional ROPS and cab configurations, contributing to operators' safety and comfort.

Key Specifications

Category: Utility

Power Output: 36.2

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3220

Fuel Type: Diesel

Image Gallery

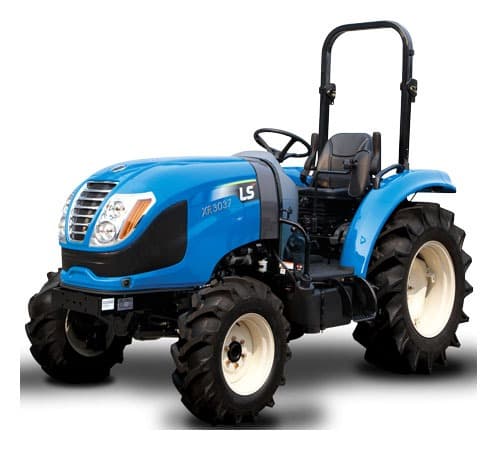

LS XR3037H Tractor

LS XR3037H vs. Similar Tractors

Power Output

Average

Greater than 33% of similar tractors.

Operating Weight

Below Average

Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: N843T-F
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 91.3
Bore (in): 3.307
Stroke (in): 3.543
Rated RPM: 2600
Power Output (hp): 36.2

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 121
Width (in): 60
Height (in): 90 (ROPS), 87 (cab)
Operating Weight (lb): 3220

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Front: 7-14, Rear: 11.2-24 | Turf: Front: 25x8.5-14, Rear: 41x14-20 | Industrial: Front: 25x8.5-14, Rear: 43x16-20
Manufacture - End Year: -
Hitch Type: I
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
