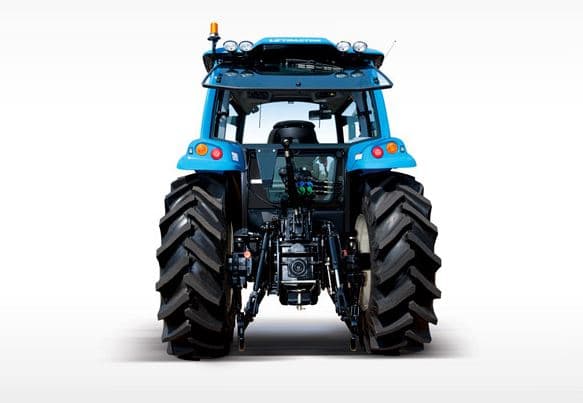

LS XP7095

Last Updated: June 2024

Overview

The LS XP7095 is a versatile utility tractor designed to meet a variety of agricultural needs. Its robust design includes a 4x4 MFWD 4WD chassis ensuring reliable power delivery in varying terrain. Powered by an LS F5G four-cylinder diesel engine, it offers an engine displacement of 206.7 cubic inches and a power output of 95 hp. The engine operates at a rated RPM of 2200 and utilizes a common rail direct injection system for efficient fuel delivery. It meets Tier 4 emissions standards, aligning with environmental regulations. The tractor's transmission system features both a 12-speed synchro shuttle and a 40-speed power shuttle, providing ample speed options for different tasks. The unit has standard agricultural tires with front-size 12.4-24 and rear-size 16.9-34, and operates with a weight of 7606 pounds. Overall, the LS XP7095 offers solid performance and specifications for everyday agricultural use.
Show more...

Key Specifications

Category: Utility

Power Output: 95

Transmission: Synchro shuttle & power shuttle

Drive Type: 4WD

Operating Weight: 7606

Fuel Type: Diesel

LS XP7095 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
LS
Model
F5G
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Common rail direct injection
Cylinders
4
Displacement (ci)
206.7
Bore (in)
3.9
Stroke (in)
4.331
Rated RPM
2200
Power Output (hp)
95

Transmission

Type
Synchro shuttle & power shuttle
Forward Gears
40
Reverse Gears
40
Total Gears
40

Dimensions

Length (in)
171.3
Width (in)
77.4
Height (in)
-
Operating Weight (lb)
7606

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
