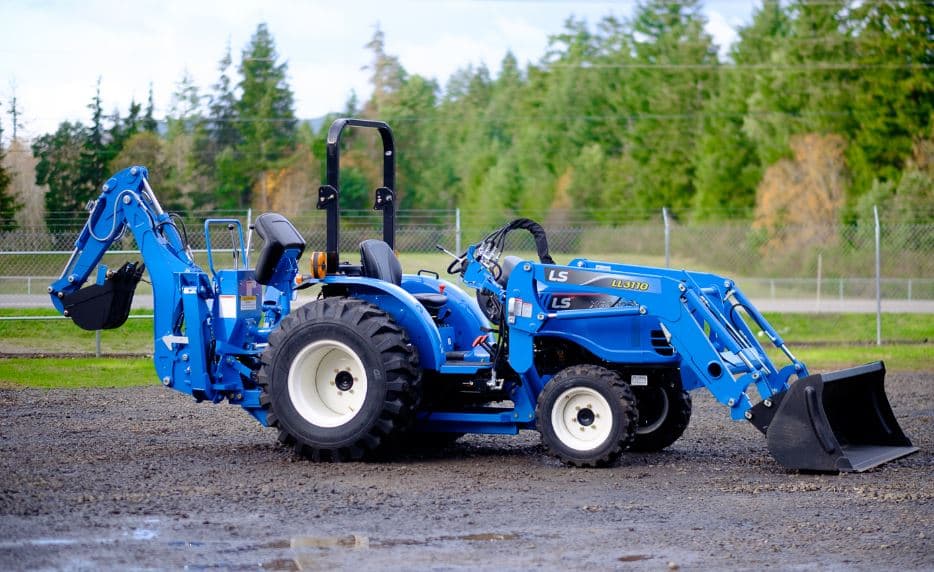

LS XG3025

Last Updated: June 2024

Overview

The LS XG3025 is a compact utility tractor equipped with a 24.4 horsepower Mitsubishi S3L2 diesel engine. It features a liquid cooling system and a displacement of 80.4 cubic inches, ensuring efficient and robust performance. The tractor is designed with a 4x4 MFWD 4WD chassis, indicative of a four-wheel-drive configuration, offering improved traction in challenging conditions. Steering is handled with a power-assisted system, allowing for easier maneuverability. The XG3025 offers a transmission that contains both sync shuttle and hydrostatic systems, providing flexibility and smooth operation with 12 forward and reverse gears. Its rear Type I hitch is compatible with Category 3 attachments, enabling it to handle a variety of tasks. With an operating weight of 2434 pounds, front tread that ranges from 43.9 to 47.5 inches, and rear tread of 43 to 52 inches, this tractor provides stability and versatility. It has a wheelbase of 66 inches, ensuring a balanced ride, and comes with options for standard, lawn/turf, or industrial tires, catering to different working conditions. The LS XG3025 is a solid choice for a range of compact utility tasks with its combination of power and functionality.
Show more...

Key Specifications

Category: Utility

Power Output: 24.4 hp

Transmission: Sync shuttle and hydrostatic

Drive Type: 4WD

Operating Weight: 2434 lbs

Fuel Type: Diesel

LS XG3025 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07 in
Stroke (in)
3.62 in
Rated RPM
2500
Power Output (hp)
24.4 hp

Transmission

Type
Sync shuttle and hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
12 forward and reverse

Dimensions

Length (in)
118 in
Width (in)
54 in
Height (in)
88 in (ROPS)
Operating Weight (lb)
2434 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag), Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
