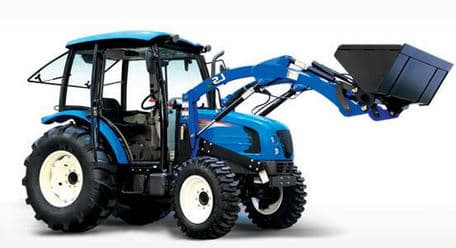

LS U6030

Last Updated: June 2024

Overview

The LS U6030 is a utility tractor known for its robust form and versatile capabilities. Equipped with a 4x4 MFWD 4WD chassis and hydrostatic power steering, it provides increased maneuverability and traction on various terrains. At its heart lies the LS L4AL-T1 diesel engine, which delivers a respectable 62 horsepower and runs on a direct injection fuel system, optimized for efficient performance. The tractor's 16-speed synchronized shuttle transmission system enables a smooth transition between forward and reverse gears, which is particularly beneficial for tasks that require frequent movement directional changes. With a wheelbase of 80.6 inches, it exhibits stability in its operations. The tractor can be fitted with either an open ROPS or an enclosed cab, weighing 4773 and 5225 pounds respectively, and offers a range of tire sizes to suit different agricultural requirements. Though engineered for practicality, the detailed specifications regarding the hydraulic system, brake type, and PTO speeds are not provided. The tractor is also fitted with a Category 3 hitch at the rear, but the hitch's lift capacity is not specified. Although ample for a range of tasks, the LS U6030's suitability for any specific job would depend on application-specific attachments and particular field conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 62

Transmission: Synchronized shuttle

Drive Type: 4WD

Operating Weight: 4773 (ROPS), 5225 (cab)

Fuel Type: Diesel

LS U6030 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
LS
Model
L4AL-T1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
159.9
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
62

Transmission

Type
Synchronized shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
135.2
Width (in)
70
Height (in)
102.9 (ROPS), 98.7 (cab)
Operating Weight (lb)
4773 (ROPS), 5225 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20 (assuming from 11.2-20 tire specification)
Front Tire Width (in)
11.2 (from 11.2-20 tire specification)
Rear Tire Diameter (in)
28 (assuming from 14.9-28 tire specification)
Rear Tire Width (in)
14.9 (from 14.9-28 tire specification)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (agricultural)
Manufacture - End Year
-
Hitch Type
Category 3 (assuming from "Rear Type: II")
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Rollover Protection Structure), Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
