LS Topa 32

Last Updated: June 2024

Overview

The LS Topa 32 is a utility tractor with a 4x4 MFWD 4WD chassis and hydrostatic power steering. It is designed with a synchro shuttle transmission featuring 8 forward and reverse gears. Powering this tractor is a Daedong 3A165 diesel engine that delivers 32 horsepower and operates at a rated RPM of 2600. The engine has a displacement of 100.5 cubic inches and utilizes a liquid-cooling system to maintain optimal temperatures during operation. The tractor's dimensions are a length of 115.4 inches and a width of 52.2 inches, with an operating weight of 2857 pounds. The LS Topa 32 has a standard Category I hitch on the rear and is built for a variety of utility tasks on a farm or work site.

Key Specifications

Category: Utility

Power Output: 32

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 2857

Fuel Type: Diesel

Image Gallery

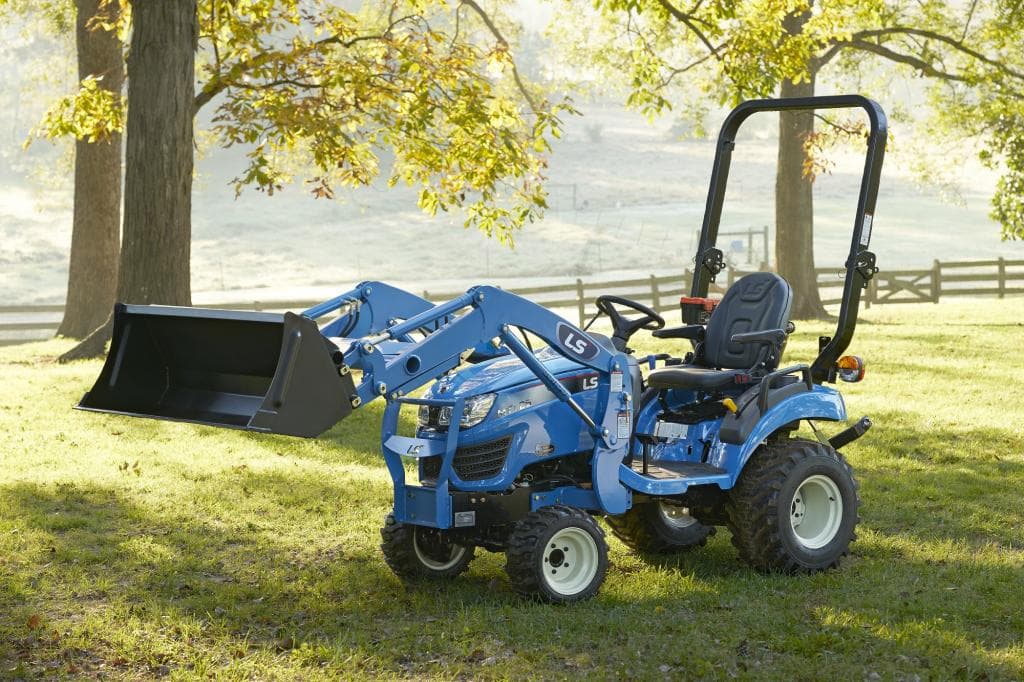

LS Topa 32 Tractor

LS Topa 32 vs. Similar Tractors

Power Output

Below Average

Greater than 27% of similar tractors.

Operating Weight

Below Average

Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: 3A165
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 100.5
Bore (in): 3.425
Stroke (in): 3.638
Rated RPM: 2600
Power Output (hp): 32

Transmission

Type: Synchro shuttle
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 115.4
Width (in): 52.2
Height (in): -
Operating Weight (lb): 2857

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
