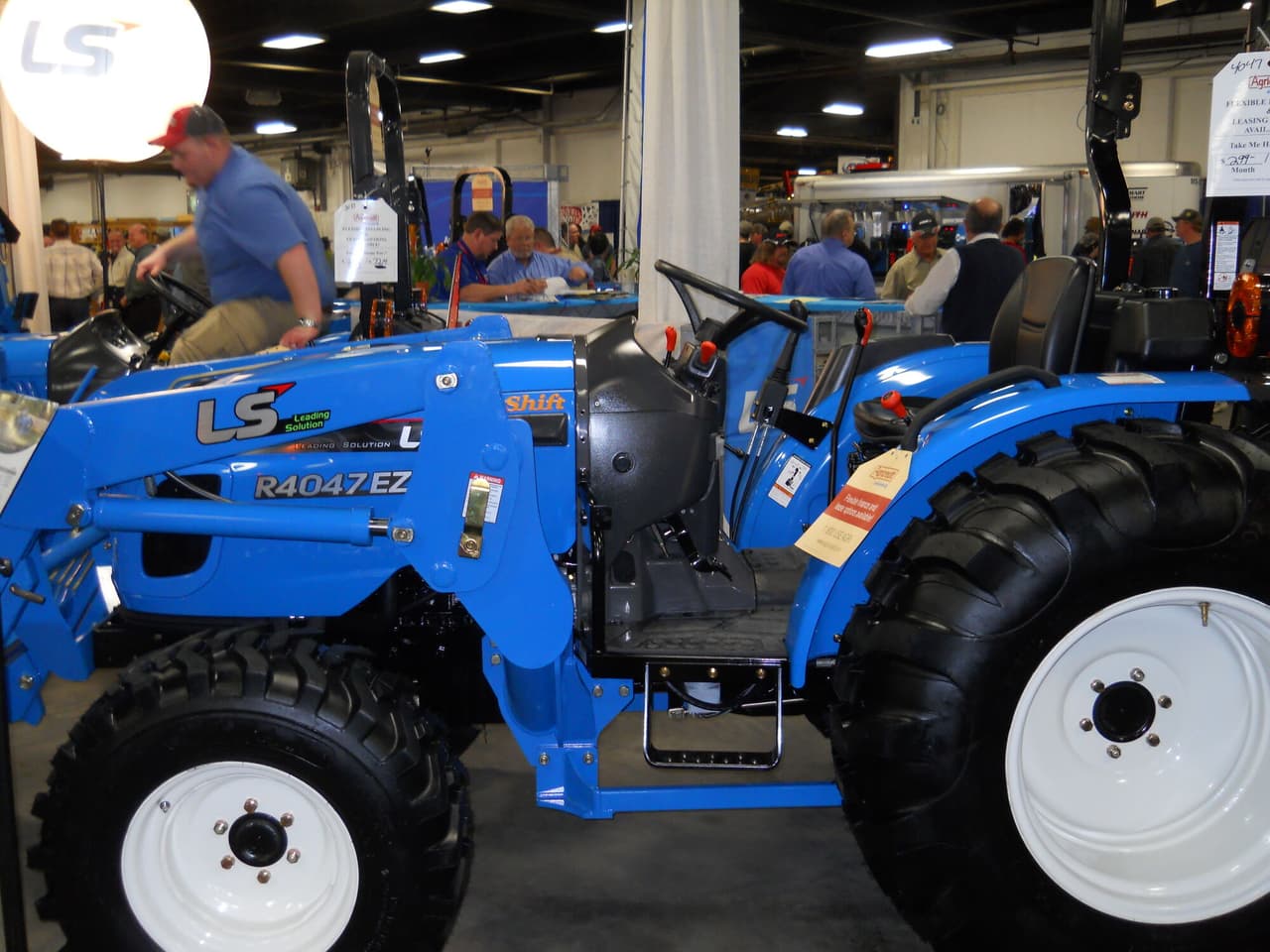

LS R4047

Last Updated: September 2024

Overview

The LS R4047 is a utility tractor built for versatile farm work. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in various conditions. The tractor is powered by a Mitsubishi S4QL diesel engine with 4 cylinders and 47 horsepower. This engine is liquid-cooled and has average power for its class.

The R4047 features a synchro shuttle transmission with 16 forward and 16 reverse gears, giving the operator plenty of options for different tasks. It has a Category I hitch at the rear, which is useful for attaching various implements. The tractor's size is compact, measuring 132.2 inches long, 55.9 inches wide, and 95.1 inches high with the ROPS (Roll-Over Protective Structure). Weighing 3,813 pounds, it's on the lighter side for utility tractors, which can be good for reducing soil compaction.
Show more...

Key Specifications

Category: Utility

Power Output: 47 hp (35.0 kW)

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 3813 lb (1730 kg)

Fuel Type: Diesel

LS R4047 vs. Similar Tractors

Power Output

The Power Output for the LS R4047 is Average. It is greater than 45% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the LS R4047 is Average. It is greater than 37% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the LS R4047 is Average. It is greater than 44% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the LS R4047 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4QL
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
4
Displacement
153 ci (2.5 L)
Bore
3.46 in (87.9 mm)
Stroke
4.06 in (103.1 mm)
Rated RPM
2600
Power Output
47 hp (35.0 kW)

Transmission

Type
Synchro shuttle
Forward Gears
16
Reverse Gears
16

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
