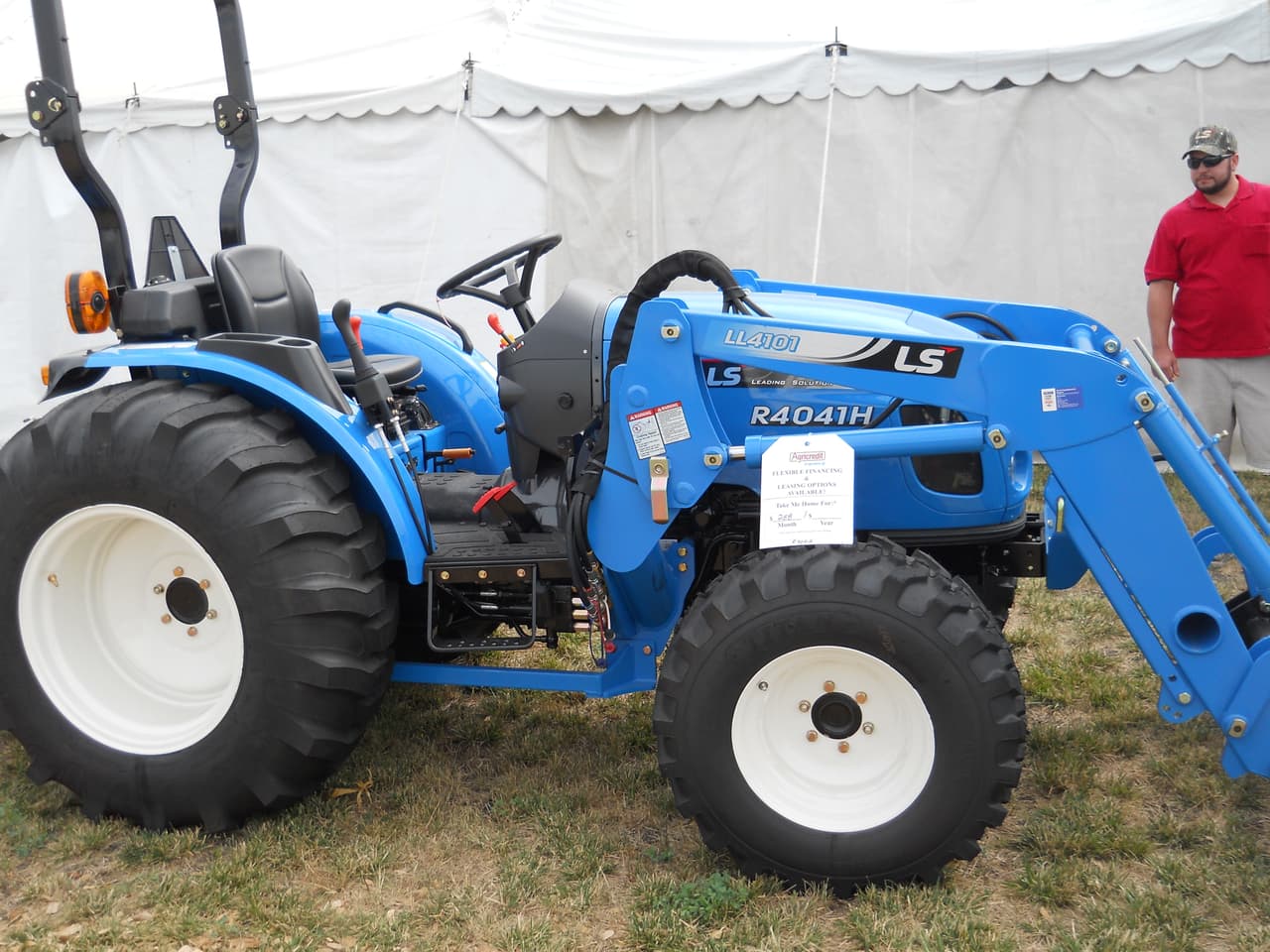

LS R4041

Last Updated: June 2024

Overview

The LS R4041 is a compact utility tractor that is well-suited for a variety of tasks around small farms, estates, and specialty operations. With a hydrostatic-powered steering system and a 4-wheel drive chassis, this tractor offers good maneuverability and traction in various working conditions. The tractor is powered by a 41 hp Mitsubishi S4QL diesel, 4-cylinder, liquid-cooled engine with a displacement of 152.9 cubic inches and a max RPM of 2600. It equips a synchro shuttle transmission with 16 forward and reverse gears, aiding in efficient fieldwork and versatility. Measuring 132.2 inches in length, 55.9 inches in width, and 95.1 inches in height with ROPS, it is designed to be sturdy yet compact enough for easy operation in tighter spaces. The LS R4041 operates with a weight of 3813 lbs and sits on standard agricultural tires, with the option for lawn/turf or industrial tires, depending on the application. Front and rear tire dimensions vary based on the chosen tire type.
Show more...

Key Specifications

Category: Utility

Power Output: 41

Transmission: synchro shuttle

Drive Type: 4WD

Operating Weight: 3813

Fuel Type: diesel

LS R4041 vs. Similar Tractors

Power Output
Average
Greater than 38% of similar tractors.
Operating Weight
Average
Greater than 34% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4QL
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
4
Displacement (ci)
152.9
Bore (in)
3.46
Stroke (in)
4.06
Rated RPM
2600
Power Output (hp)
41

Transmission

Type
synchro shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
132.2
Width (in)
55.9
Height (in)
95.1
Operating Weight (lb)
3813

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag), Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
Category 3
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
electric
Brake Type
-
Hydraulic System Type
-
