LS PS90

Last Updated: June 2024

Overview

The LS PS90 is a utility tractor that comes equipped with a robust 4-cylinder turbocharged intercooled diesel engine provided by FPT, boasting an engine displacement of 195 cubic inches and a power output of 87 horsepower. Regarding transmissions, the tractor is designed to maximize productivity with a 20-speed or a 40-speed synchronized/power shuttle option, providing ample gearing for various tasks. The 4x4 MFWD 4WD chassis ensures that the tractor can handle rough terrain with ease, and the hydrostatic power steering provides a smoother and more responsive control. The tractor features an engine rated RPM of 2300 and operates either under a foldable ROPS or within a cab, suggesting adaptability to diverse environmental conditions. The weight varies between 6411 lbs and 7015 lbs, indicating a solid and stable platform for a range of heavy-duty jobs, consistent with the versatile nature of a utility tractor.

Key Specifications

Category: Utility

Power Output: 87

Transmission: Synchronized shuttle / Power shuttle

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 6411 (ROPS) / 7015 (cab)

Fuel Type: Diesel

Image Gallery

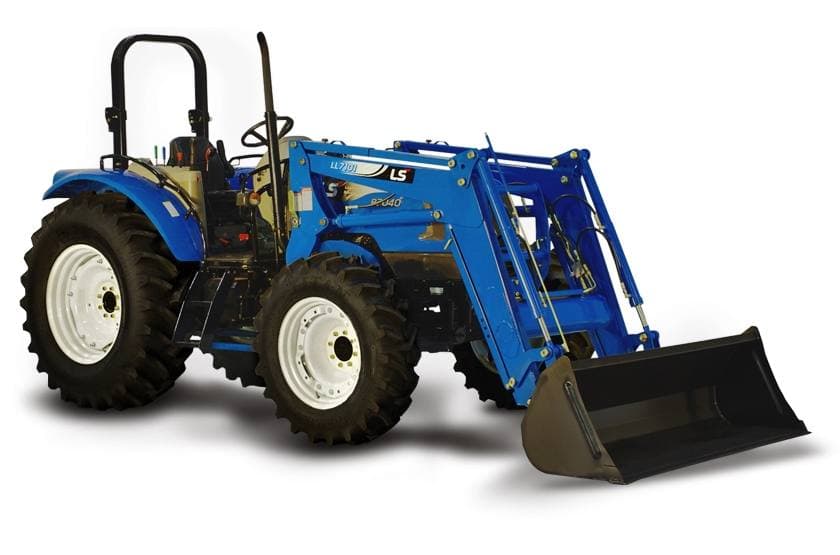

LS PS90 Tractor

LS PS90 vs. Similar Tractors

Power Output

Above Average

Greater than 75% of similar tractors.

Operating Weight

Above Average

Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: F5C
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 4
Displacement (ci): 195
Bore (in): 3.898
Stroke (in): 4.094
Rated RPM: 2300
Power Output (hp): 87

Transmission

Type: Synchronized shuttle / Power shuttle
Forward Gears: 20 / 40
Reverse Gears: 20 / 40
Total Gears: -

Dimensions

Length (in): 157.1
Width (in): 79.5
Height (in): 105.4 (ROPS) / 103.5 (cab)
Operating Weight (lb): 6411 (ROPS) / 7015 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD (Mechanical Front Wheel Drive)
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS / Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
