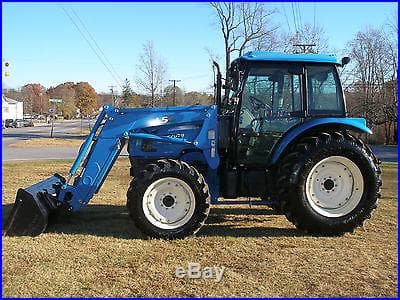

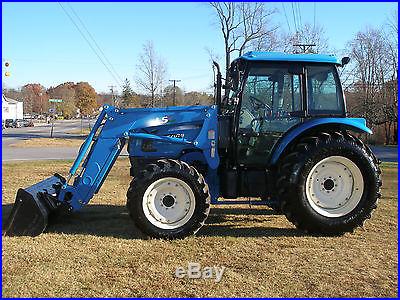

LS P7010

Last Updated: June 2024

Overview

The LS P7010 is a utility tractor known for its robust build and powerful performance. It features a 4x4 MFWD (mechanical front-wheel drive), ensuring enhanced traction and control across diverse terrains. The tractor's steering is power-assisted, providing ease of maneuverability. At the heart of the P7010, the Iveco FPT F5C turbocharged diesel engine stands out with a displacement of 195.3 cubic inches and a power output of 72 horsepower, delivering substantial power for various agricultural tasks. The engine operates at a rated speed of 2300 RPM and adheres to Interim Tier 4 emission standards. A distinctive element of this model is its 20-speed synchro shuttle transmission, which offers a vast array of gear options for both forward and reverse movement, facilitating efficient operation across different tasks. The tractor features a standard ag tire setup with a front tire width of 11.2 inches and a diameter of 24 inches, while the rear tires measure 16.9 inches wide and 30 inches in diameter. The LS P7010 is designed to accommodate substantial wear, with a listed weight of 6675 pounds. Built for durability and strength, this tractor is suited for a wide range of agricultural operations, from plowing and tilling to lifting and hauling.
Show more...

Key Specifications

Category: Utility

Power Output: 72

Transmission: Synchro Shuttle

Drive Type: MFWD

Operating Weight: 6675

Fuel Type: Diesel

LS P7010 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
FPT F5C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
195.3
Bore (in)
3.898
Stroke (in)
4.094
Rated RPM
2300
Power Output (hp)
72

Transmission

Type
Synchro Shuttle
Forward Gears
20
Reverse Gears
20
Total Gears
-

Dimensions

Length (in)
157.1
Width (in)
77.8
Height (in)
102.3
Operating Weight (lb)
6675

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD
Steering Type
Power Steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
11.2
Rear Tire Diameter (in)
30
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Cat. II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
