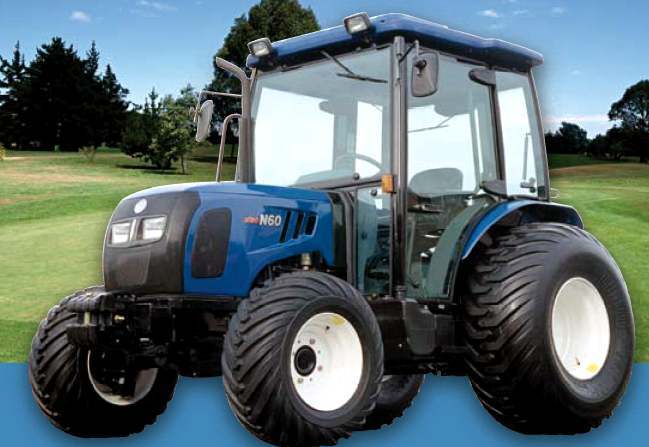

LS Neo N60

Last Updated: June 2024

Overview

The LS Neo N60 tractor, powered by a 57 horsepower (42.5 kW) 4-cylinder diesel Mitsubishi S4S-D engine, offers a robust and utilitarian design suitable for a variety of agricultural tasks. It is designed with a liquid-cooled engine that displaces 203.3 cubic inches, indicating a substantial amount of power and efficiency for medium-duty farming. The engine operates at a rated RPM of 2500 and employs a precleaner and oil bath air cleaner to ensure the longevity and reliability of the engine. This tractor is equipped with a four-wheel drive (4WD) chassis and features a 16-speed synchro shuttle transmission that allows for smooth transitions between its forward and reverse gears. With hydrostatic power steering, operators can expect responsive and easy control, enhancing maneuverability on various terrains. The Neo N60 sits on a wheelbase of 81.7 inches, providing stability and comfort during operation. Its operating weight is 5556 pounds, a testament to its solid build and capability to handle significant loads and attachments. Both the front and rear tires are of the agricultural type, with dimensions betraying a rugged readiness for diverse field conditions. The tractor's dimensions are functional and relatively compact, with a length of 142 inches, a width of 55.4 inches, and a height of 96.7 inches, which should allow it to perform in different workspaces without much constraint. Despite its many specified details, there is information about the tractor not provided or ascertainable from the given data, such as the hydraulic system type, power take-off characteristics, and operator station type. Nonetheless, the LS Neo N60 emerges as a practical machine designed for efficiency and reliability in the agricultural sector.
Show more...

Key Specifications

Power Output: 57

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 5556

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4S-D
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
203.3
Bore (in)
3.701
Stroke (in)
4.724
Rated RPM
2500
Power Output (hp)
57

Transmission

Type
Synchro shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
142
Width (in)
55.4
Height (in)
96.7
Operating Weight (lb)
5556

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Rear Type I/II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
