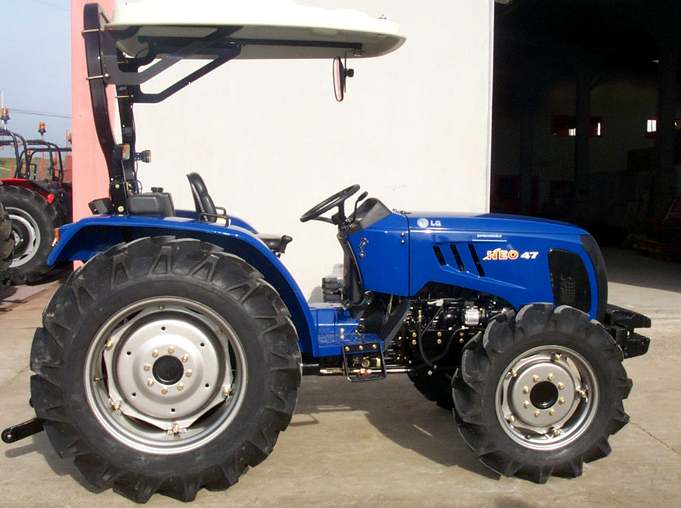

LS Neo N47

Last Updated: June 2024

Overview

The LS Neo N47 is a compact utility tractor that embodies a blend of power and versatility. Outfitted with a Mitsubishi S4QL four-cylinder diesel engine, the tractor ensures reliable performance and durability. The engine's 49 horsepower output and 152.9 cubic inch displacement provide ample muscle for a variety of tasks, while the synchro shuttle 8-speed (or 16-speed) transmission facilitates smooth direction changes and speed shifts. With 4WD capability, the tractor maintains traction in diverse operating conditions. The power steering system enhances maneuverability, making it easier to navigate tight spaces. The tractor's substantial operating weight range acknowledges optional attachments or ballast for stability. The LS Neo N47, with its durable design and a wheelbase of 74.8 inches, delivers consistent performance for a range of agricultural and utility tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 49

Drive Type: 4WD

Operating Weight: 4321 to 5203

Fuel Type: Diesel

LS Neo N47 vs. Similar Tractors

Power Output
Average
Greater than 47% of similar tractors.
Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4QL
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
152.9
Bore (in)
3.465
Stroke (in)
4.055
Rated RPM
2600
Power Output (hp)
49

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
16

Dimensions

Length (in)
125.7
Width (in)
52.6
Height (in)
95.9
Operating Weight (lb)
4321 to 5203

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
