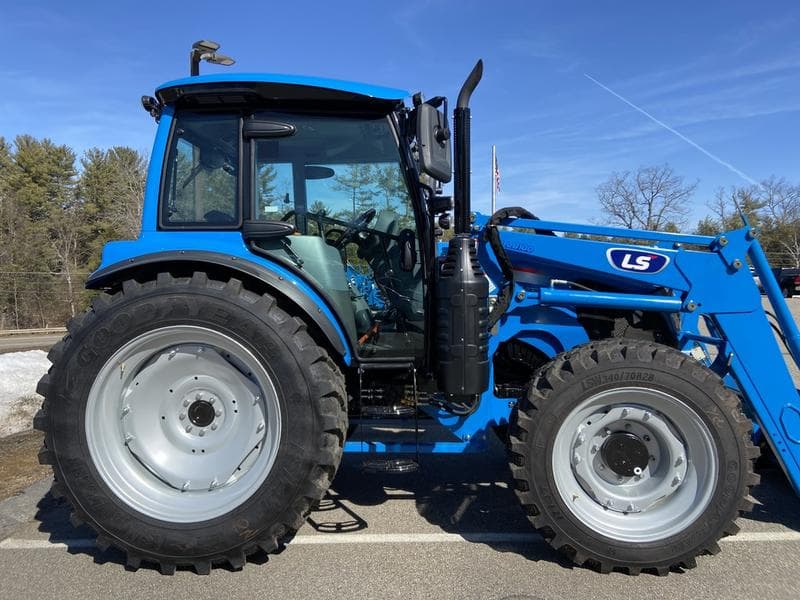

LS MT7101

Last Updated: June 2024

Overview

The LS MT7101 is a utility tractor designed for a variety of tasks and plausible within multiple agricultural applications. Powered by an FPT F5G four-cylinder diesel engine with liquid cooling and common rail direct injection, it delivers a gross power output of 100.6 horsepower at a rated 2200 RPM. The power plant follows Tier IV emissions standards, ensuring compliance with modern environmental regulations. Its power shuttle transmission is equipped with an impressive 40 forward and reverse gears, which allows for a broad range of speeds and improved usability in diverse tasks, from field work to hauling. The tractor features a sizeable wheelbase of 90 inches, providing good stability across different terrains. Additionally, a standard weight of 7714 pounds gives it substantial heft and traction. The LS MT7101 is fitted with an enclosed cab, offering comfort and protection to the operator, and it sports industrial and agricultural tire options to suit various working conditions. With its substantial operating weight and flexible tire setups, this model is well-suited to meet the demands of modern farming operations.
Show more...

Key Specifications

Category: Utility

Power Output: 100.6

Transmission: Power shuttle

Operating Weight: 7714

Fuel Type: Diesel

LS MT7101 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
F5G
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Common rail direct injection
Cylinders
4
Displacement (ci)
206.7
Bore (in)
3.898
Stroke (in)
4.331
Rated RPM
2200
Power Output (hp)
100.6

Transmission

Type
Power shuttle
Forward Gears
40
Reverse Gears
40
Total Gears
-

Dimensions

Length (in)
152.2
Width (in)
78.7
Height (in)
105.4 (cab)
Operating Weight (lb)
7714

Power Take-Off (PTO)

PTO Type
540/750/1000
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agr: Front: 13.6-24, Rear: 18.4-34 | Ind: Front: 340/70R28, Rear: 460/75R38
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
