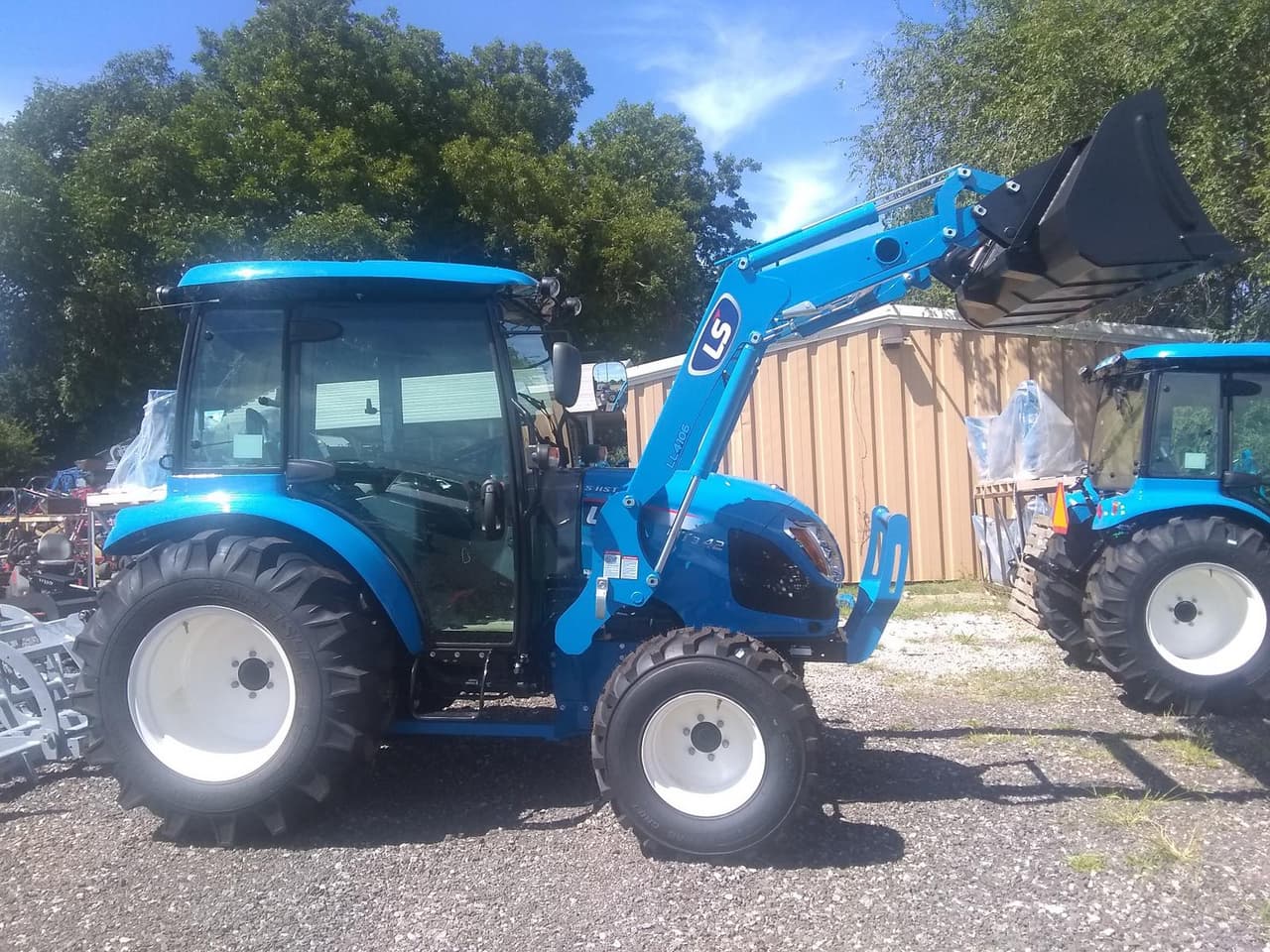

LS MT342

Last Updated: June 2024

Overview

The LS MT342 is a compact utility tractor that offers versatility for a range of tasks with its powerful turbocharged diesel engine and liquid-cooling system. With an engine displacement of 114.7 ci, it is capable of producing 42 horsepower at 2600 RPM. This tractor features a 4x4 MFWD 4WD chassis and is equipped with both a synchro shuttle transmission and a hydrostatic option, each offering 16 forward and reverse gears. Steering is power-assisted for better maneuverability. The rugged frame and a weight between 3869 to 4446 pounds, depending on the configuration, contribute to the durability and performance of this tractor. With different tire options, the MT342 can be adapted for agricultural, lawn, turf, or industrial purposes. Additionally, it has a three-point rear hitch (Category I) and an open center hydraulic system.
Show more...

Key Specifications

Category: Utility

Power Output: 42

Transmission: Synchro shuttle / Hydrostatic

Drive Type: MFWD / 4WD

Operating Weight: 3869 (ROPS gear) / 4380 (ROPS cab) / 3935 (ROPS hydro) / 4446 (Cab hydro)

Fuel Type: Diesel

LS MT342 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Excellent
Greater than 99% of similar tractors.

Technical Specifications

Engine

Manufacturer
LS
Model
L3C19-T10
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
114.7
Bore (in)
3.465
Stroke (in)
4.055
Rated RPM
2600
Power Output (hp)
42

Transmission

Type
Synchro shuttle / Hydrostatic
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
133
Width (in)
62.5
Height (in)
95 (ROPS) / 90 (Cab)
Operating Weight (lb)
3869 (ROPS gear) / 4380 (ROPS cab) / 3935 (ROPS hydro) / 4446 (Cab hydro)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD / 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
9.5
Front Tire Width (in)
16
Rear Tire Diameter (in)
13.6
Rear Tire Width (in)
24
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
